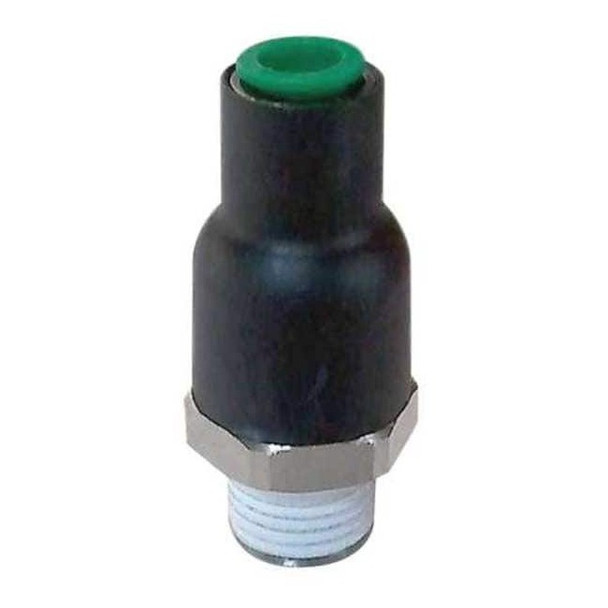

Legris 1-4" Tube x 1-8" MNPT Meter Input Check Valve 7985 56 11

LEGRIS 7985 56 11 is a meter input check valve for compressed air service. It installs on the meter inlet and is configured for single-direction flow at the meter inlet. This inline, single-flow valve features a tube x MNPT connection and an inline body design for horizontal or vertical mounting. Key Features: Meter input check valve for compressed air service Connection size: 1/4 in tube x 1/8 in MNPT Connection type: Tube x MNPT; side 1 female, side 2 male Inline body design with swing check mechanism Body material: nylon and nickel-plated brass Seal, seat, and check mechanism material: Buna-N/Nitrile Cracking pressure: 3.6 psi Maximum operating pressure: 145 psi Operating temperature range: -32 degrees F to 158 degrees F Mounting orientation: horizontal or vertical Hex size: 3/4 in Overall length: 1.42 in Standards: RoHS
