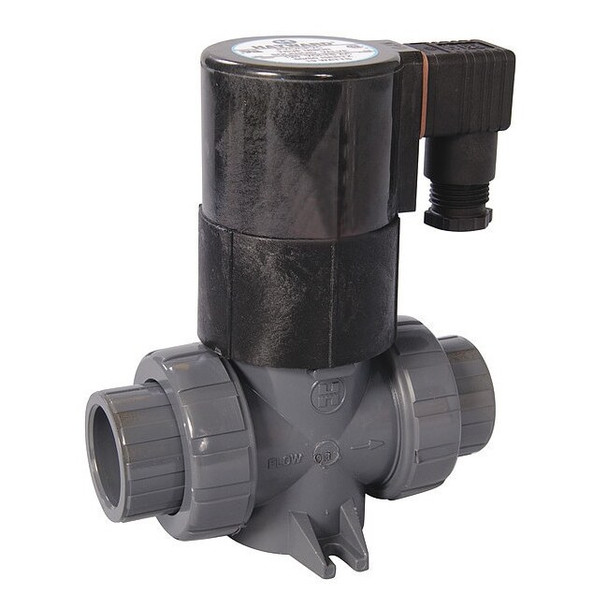

Hayward Flow Control SV20075STE

The HAYWARD FLOW CONTROL SV20075STE is a 2-way, 2-position direct acting solenoid valve with a normally closed starting configuration. It features a straight valve body style made from CPVC and is intended for inline single-valve installations. Media compatibility: acids, salt water, water. Rated for operation at 120 V AC, 60 Hz; includes solenoid coil and required seals. Mounting orientation: horizontal or vertical. Environmental rating: corrosive environments; indoor and outdoor use. Key Features: - Body Material: CPVC construction - Valve Design: 2-Way/2-Position, normally closed configuration - Valve Type: Inline Single, direct acting operation - Nominal Pipe Size: 3/4 in with NPT threads for inlet and outlet - Media compatibility: acids, salt water, water - Maximum differential pressure: 120 psi (oil); 90 psi (water) - Maximum Fluid Temperature: 200°F; Minimum Fluid Temperature: 120°F - Maximum Ambient Temperature: 190°F; Minimum Ambient Temperature: 34°F - Coil Enclosure: Watertight with Class F insulation - Electrical connections: 1/2 in conduit; Electrical rating: 120 V AC, 60 Hz - Flow Characteristics: Cv of 3.2, max flow 7 gpm, max flow velocity 5 fps - Seal Material: EPDM - Dimensions: Overall length 5-1/2 in, height 6-19/32 in, width 3 in - Environmental rating: corrosive environments; indoor/outdoor use - NEMA Enclosure Rating: 4
