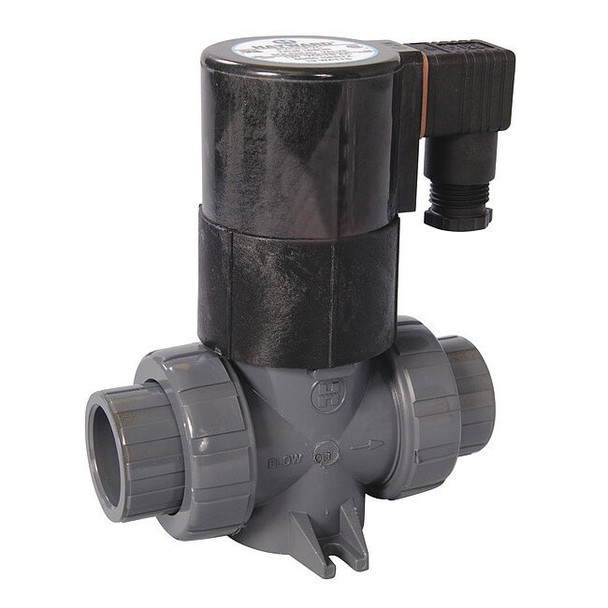

Hayward Flow Control SV20050STE

The HAYWARD FLOW CONTROL SV20050STE is a 2-way, 2-position solenoid valve designed for inline single valve body style applications. It operates with a normally closed configuration and features direct acting operation. The valve is constructed with a CPVC body and uses EPDM seals; media compatibility: water, acids, and salt water media. This solenoid valve supports both horizontal and vertical mounting orientations and includes the coil and sealing components. It is rated for a maximum fluid temperature of 200°F and ambient temperatures ranging from 34°F to 190°F. Key Features: - Valve Body Material: CPVC - Seal Material: EPDM - Valve Design: 2-Way/2-Position; Valve Positions: 2-Position; Valve Type: Inline Single - Operation Type: Direct Acting - Starting Configuration: Normally Closed - Nominal Pipe Size: 1/2 in; Inlet/Outlet Connection Type: NPT; Thread Type: NPT - Maximum Operating Pressure Differential: 90 psi (Water), 120 psi (Light Oil) - Maximum Airflow: 3.8 gpm; Maximum Flow Rate: 5 fps; Cv: 2.3 - Orifice Diameter: 3/8 in - Electrical Voltage: 120V AC; Frequency: 60 Hz; Wattage: 19.2 W - Coil Enclosure: Watertight; Coil Insulation Class: F; Electrical Connections: 1/2 in Conduit - Environmental use: Indoor and outdoor; NEMA Enclosure Rating: 4 - Overall Dimensions: Length 5-5/16 in, Width 3 in, Height 6-19/32 in - Includes Coil: Yes; Includes Seal: Yes
