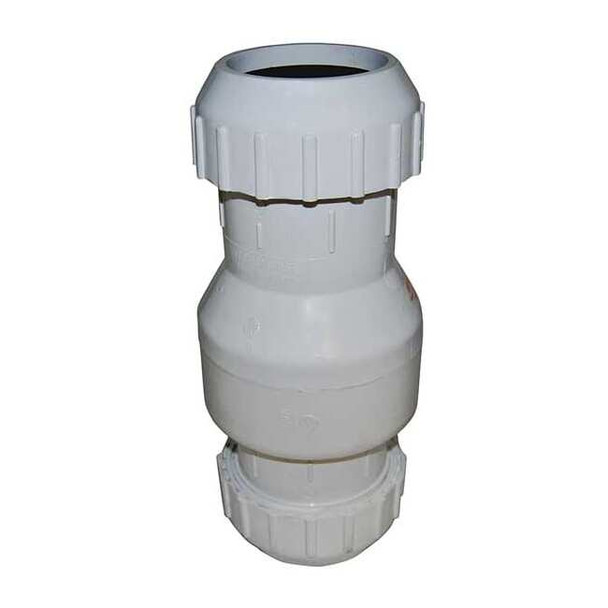

Zoeller 3" Compression PVC Full Flow Check Valve 30-0030

ZOELLER 30-0030 is a 3 in full-flow check valve with an inline swing design for one-way water flow in pump piping systems. Its PVC body and internal PVC check mechanism have a full-flow passage for pump piping applications and are intended to reduce backflow. The valve uses 3 in compression x compression female connections and can be mounted horizontally or vertically. Key Features: Full-flow check valve with a full-flow valve path and one-way flow design. Inline swing check mechanism with inline body style. PVC body, PVC seat, PVC check mechanism, and Buna-N seal. 3 in compression x compression connections, female on both sides. For water service in pump applications. 1 psi cracking pressure. 125 psi maximum water pressure at 75 degrees F; 125 psi maximum operating pressure. 130 degrees F maximum operating temperature. Horizontal or vertical mounting orientation. Dimensions: 14 in overall length, 18 in overall height, 7 in width.
