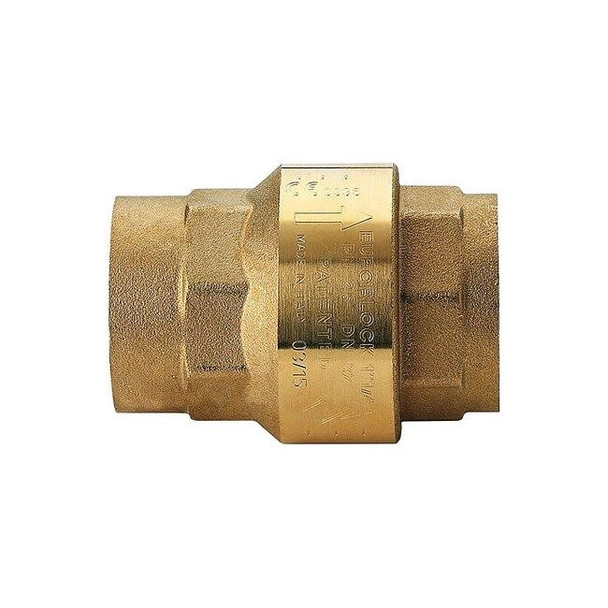

Bonomi 3-8" NPT Brass Spring Check Valve 100003-3-8"

BONOMI 100003-3/8 is a 3/8 in inline spring check valve with female NPT connections on both ends. The brass body and single-flow design provide automatic one-way flow control in general-purpose systems handling gas, oil, steam, or water, and are intended to reduce reverse flow. It can be mounted horizontally or vertically and features a 0.5 psi cracking pressure, flow rate of 4.28 gpm, and Cv of 2.1. Key Features: 3/8 in nominal valve size with FNPT x FNPT connections Brass body construction Inline spring mechanism with spring check mechanism and inline body style For use with gas, oil, steam, and water Cracking pressure: 0.5 psi Flow rate: 4.28 gpm; Cv: 2.1 Maximum operating pressure: 400 psi; maximum steam pressure: 125 psi WSP Operating temperature range: -4 degrees F to 366 degrees F Seal and seat materials: FKM/ Spring material: 302 stainless steel; check mechanism material: PPS Overall length: 1.73 in; overall height: 1-1/16 in; width: 1.06 in Standards: ANSI B1.20.1
