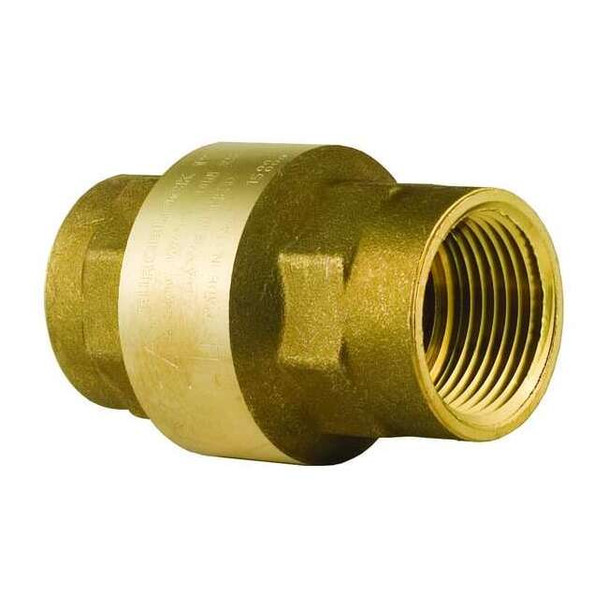

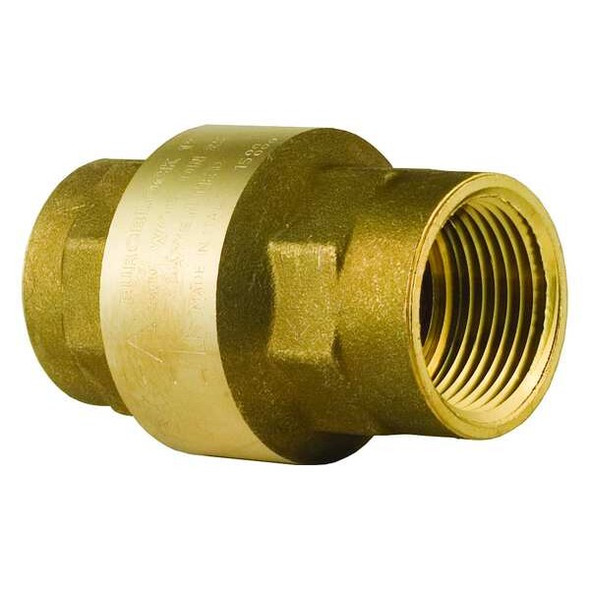

Bonomi 1-4" NPT Brass Spring Check Valve 100012LF-1-4"

BONOMI 100012LF-1/4 is a 1/4 in. inline spring check valve with FNPT x FNPT connections. It is designed for general-purpose service with gas, oil, and water and is configured for one-way flow and reverse-flow control in piping systems. The lead-free brass body, 0.5 psi cracking pressure, and full-flow design; mounting orientation: horizontal or vertical. Key Features: 1/4 in. valve size with female NPT connections on both ends Inline spring check design with single-flow path and 2-way configuration Lead-free brass body Spring check mechanism with PPS check mechanism material Flow rating: 4.28 gpm; Cv: 2.1 Cracking pressure: 0.5 psi Maximum operating pressure: 400 psi Maximum temperature: 210 degrees F Minimum operating temperature: -4 degrees F Seal and seat materials: , Buna-N, and NBR Spring material: 302 stainless steel Mounting orientation: horizontal or vertical Certifications and standards: NSF 61, ANSI B1.20.1, NSF 372, UL Listed Overall size: 1.73 in. L x 1-1/16 in. H x 1-1/16 in. W Hex size: 13/16 in.
