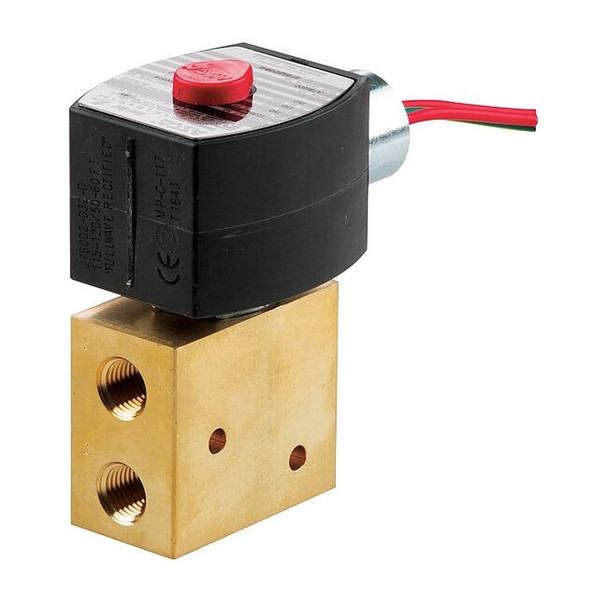

Asco EF8327G041

The ASCO EF8327G041 is a 3-way, 2-position valve with configurable start position, designed for automated control of fluid flow. It features a brass body and NBR seal material, suitable for media including air, light oil, and water. The valve operates with a 1/4 inch nominal pipe size and orifice diameter, allowing fluid flow with a coefficient of volume (Cv) of 0.56. It functions within a maximum fluid temperature of 176°F and an operating pressure differential up to 150 psi for air, light oil, and water. The valve includes a coil rated for 120V AC at 50 and 60 Hz frequencies and consumes 12 W of power. The coil enclosure is explosion-proof and watertight, with insulation class F, and the electrical connection is via 1/2 inch conduit with 18 inch leads. Key Features: - Valve design: 3-way, 2-position valve with configurable start position - Body Material: Brass construction - Seal Material: NBR (Buna-N) - Nominal Pipe Size and Orifice Diameter: 1/4 inch - Flow Coefficient (Cv): 0.56 - Maximum Fluid Temperature: 176°F - Operating Pressure Differential: 0 to 150 psi for air, light oil, and water - Voltage and Frequency: 120V AC, 50/60 Hz - Wattage: 12 W - Coil enclosure: explosion-proof and watertight; insulation class F - Electrical Connections: 1/2 in conduit with 18 in leads - Inlet and Outlet Connections: NPTF threads - Overall Dimensions: Length 2-3/16 in, Height 3-15/16 in, Width 1-3/16 in - Standards: CSA and UL Listed - Valve Type: High Flow
