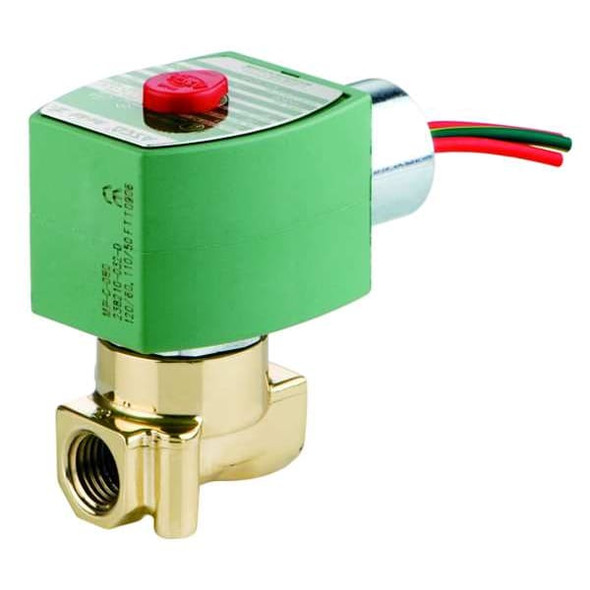

Asco 8262H262

The ASCO 8262H262 is a 2-way, 2-position normally open direct acting solenoid valve constructed with a brass body. Suitable for use with air, inert gases, light oil, and water. The valve includes an coil and seal. Suitable for both horizontal or vertical mounting orientations, it operates within an ambient temperature range down to -13°F and can accommodate fluid temperatures up to 180°F. Its coil enclosure IP66; NEMA 4, 4X enclosures are rated for indoor/outdoor use in environments conforming to those ratings. Key Features: - Nominal pipe size: 1/4 in with NPT inlet and outlet connection types - Center line pipe size: 2-1/2 in - Orifice diameter: 1/8 in - Maximum operating pressure differential: 160 psi (air/inert gas), 125 psi (light oil), 145 psi (water) - Minimum operating pressure differential: 0 psi (air/inert gas, light oil, water) - Electrical specifications: 120V AC, 60 Hz frequency - Wattage: 10.1 W - Coil insulation class: F - Electrical connections: 1/2 in conduit with 18 in leads - Response time: 1 second - Valve dimensions: Overall height 3-1/8 in, length 1-9/16 in, width 2-1/16 in - Seal material: NBR - Includes coil and seal - Standards: CE, CSA, UL Listed
