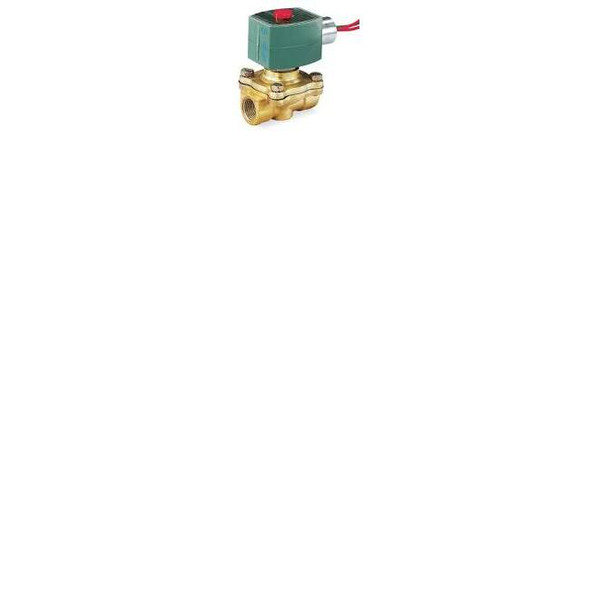

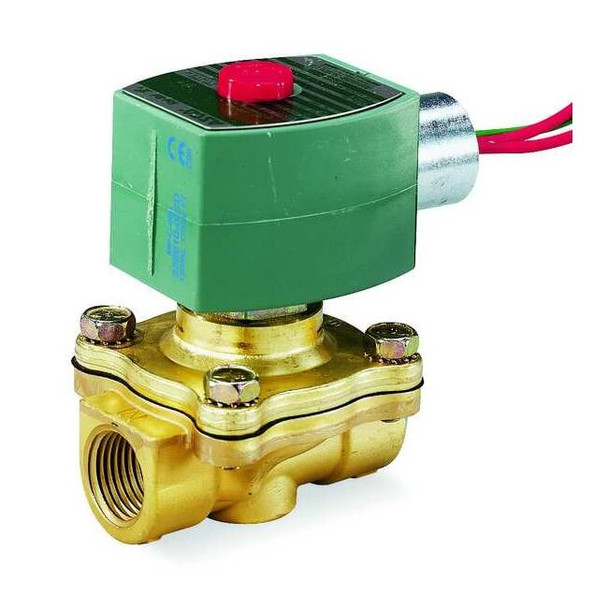

Asco 8210G034

The ASCO 8210G034 is a pilot operated solenoid valve designed for automated control of fluid and gas flow through a 2-way, 2-position valve configuration. It features a normally open starting position and a high flow valve design, enabling fast switching; Switching time: approximately 1 second. The valve body is constructed from brass and is equipped with an NBR seal. It operates on 120V AC power at 50/60 Hz frequency and includes the coil necessary for actuation. Vertical mounting orientation; NPTF inlet and outlet connections are compatible with standard piping. Operating environment: indoor/outdoor use per IP66-rated enclosure; ingress protection: IP66 per enclosure rating. Key Features: - Valve Design: 2-Way/2-Position with Normally Open configuration - Operation Type: Pilot Operated for controlled flow management - Body Material: Brass with NBR (Buna-N) seals - Electrical: 120V AC, 10.1 W power consumption, 1/2 in conduit hub connection - Dimensions: 4-3/8 in height, 2-3/4 in length, 2-5/16 in width - Pressure Ratings: Maximum 150 psi differential for air, inert gas, and water; 125 psi for light oil; minimum 0 psi differential for all listed media - Media Compatibility: Air, inert gas, light oil, and water - Temperature Range: Ambient 14°F to 140°F; fluid max 180°F - Environmental/enclosure ratings: IP66; NEMA 1, 2, 3, 3S, 4, 4X - Coil enclosure: watertight; external junction box not required - Orifice Diameter: 5/8 in - Includes: Coil and sealing components
