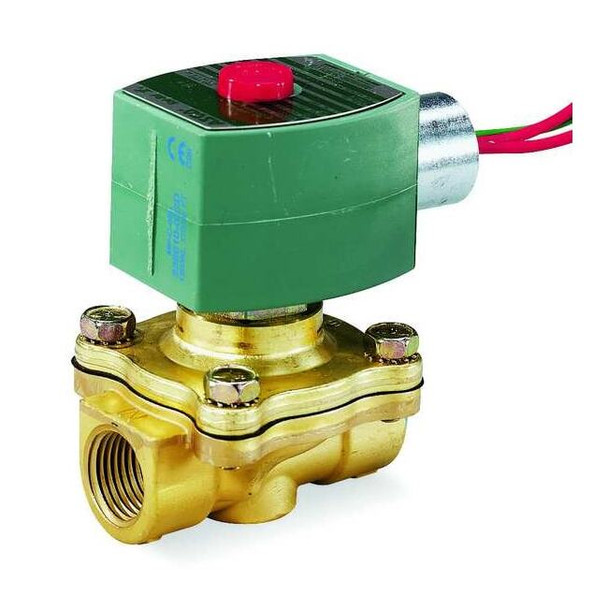

Asco 8210B057

The ASCO 8210B057 Solenoid Valve is a pilot-operated, 2-way/2-position valve with a normally open configuration. Media compatibility: Air, Inert Gas, Light Oil, Water. It features a brass body and includes a coil and seal. The valve operates within a temperature range of 14°F to 140°F ambient and can handle fluid temperatures up to 180°F. Environmental Rating: Indoor, Outdoor. Ingress Protection rating: IP66. Nominal Pipe Size: 1 in; Orifice Diameter: 1 in; Cv: 13. Its operation voltage is 120V AC with a coil wattage of 20 W and a coil insulation class F. The valve’s electrical connections use a 1/2 inch conduit hub. Key Features: - Valve Design: 2-Way/2-Position with Normally Open starting configuration - Body Material: Brass - Operating Pressure Differential: Maximum 350 psi for air/inert gas; 125 psi for light oil and water; minimum 0 psi for all - Ambient Temperature Range: 14°F minimum to 140°F maximum - Fluid Temperature Maximum: 180°F - Media compatibility: Air, Inert Gas, Light Oil, Water - Mounting Orientation: Vertical - Coil Enclosure: Watertight; Junction box not required - Electrical Connections: 1/2 in conduit hub - Ingress Protection rating: IP66 - Includes Coil and Seal: Yes - Nominal Pipe Size: 1 in; Orifice Diameter: 1 in; Cv: 13 - Response Time: 1 second - Seal Material: NBR (Buna-N) - NEMA Ratings: 1, 2, 3, 3S, 4, 4X - Environmental Rating: Indoor, Outdoor
