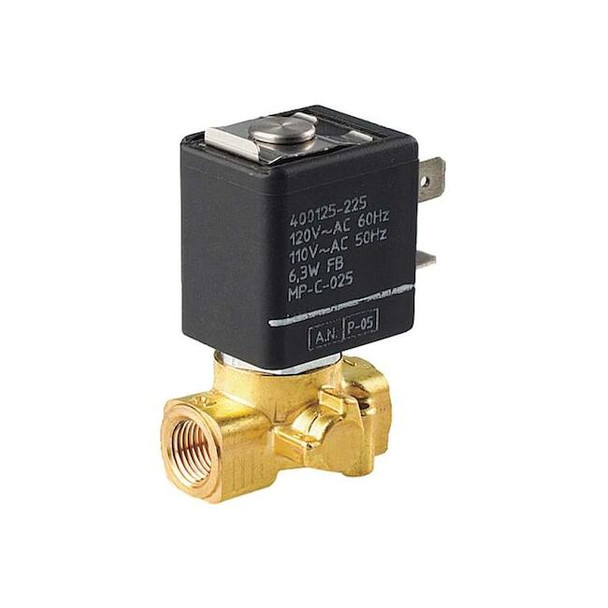

Asco SC8256B045V

The ASCO SC8256B045V is a compact, direct-acting 2-way/2-position solenoid valve with a normally closed configuration. The valve is rated to control media: air, inert gases, light oil, and water within the specified operating pressure and temperature ranges. Operation is actuated by an energized coil; coil included with the product. This valve supports both horizontal and vertical mounting orientations and is rated for indoor use with NEMA 4/4X enclosure protection and IP66 ingress protection. Key Features: - Body Material: Brass - Seal Material: FKM - Nominal Pipe Size: 1/8 in - Center Line Pipe Size: 1-13/16 in - Orifice Diameter: 1/8 in - Valve Design: 2-Way/2-Position - Valve Starting Configuration: Normally Closed - Operating Pressure Differential Maximum: 135 psi air/inert gas, 80 psi light oil, 126 psi water - Operating Pressure Differential Minimum: 0 psi for air/inert gas, light oil, and water - Fluid Temperature Maximum: 180°F - Coil Voltage: 24V AC - Coil Wattage: 6.3 W - Coil Insulation Class: F - Electrical Connections: DIN - Coil enclosure without a junction box; enclosure rated watertight per product specifications - Includes Coil: Yes - Includes Seal: Yes - Environmental Rating: Indoor - Response Time: 20 msec - Overall Dimensions: Length 1-13/16 in, Height 2 in, Width 1 in
