Asco EF8321G00124-DCDD

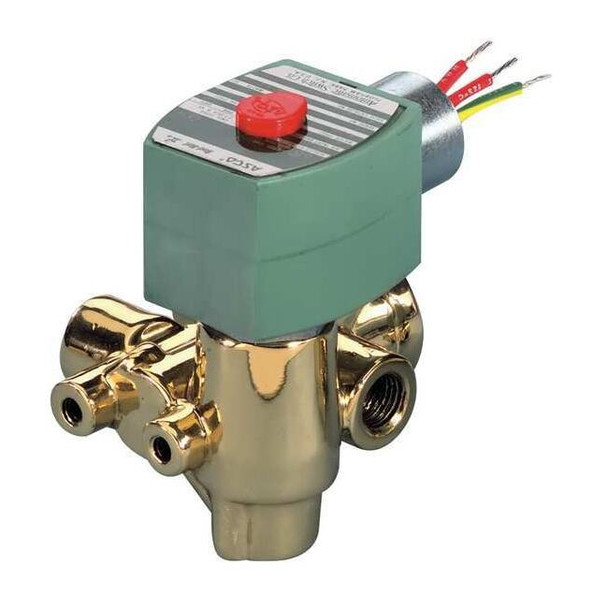

The ASCO EF8321G00124/DCDD is a 3-way, 2-position solenoid valve with a normally closed starting configuration, designed for use with air, inert gases, light oil, and water. It features a pilot-operated single air pilot actuator and a quick exhaust valve type. The valve body is made of brass and includes the coil and seals included for operation. It supports mounting in either horizontal or vertical orientation and controls fluid or gas flow via a pilot-operated actuator; Center Line Pipe Size: 2 in; Nominal Pipe Size: 1/4 in; Inlet/Outlet: NPTF. Key Features: - Valve Design: 3-Way/2-Position, Normally Closed - Actuator Type: Single Air Pilot, Pilot Operated - Valve Type: Quick Exhaust - Body Material: Brass - Nominal Pipe Size: 1/4 in; Center Line Pipe Size: 2 in - Connection Types: Inlet and Outlet NPTF - Operating Pressure Differential: Maximum 200 psi for Air/Inert Gas, Light Oil, and Water; Minimum 10 psi for Light Oil - Fluid Compatibility: Air, Inert Gases, Light Oil, Water - Coil Enclosure: Explosion Proof, Watertight; Coil Insulation Class: F - Electrical: 24 VDC Voltage with 10.6 W Wattage; 1/2 in Conduit with 18 in Leads for connections - Seal Material: NBR (Buna-N) - Environmental rating: Indoor, Outdoor - Dimensions: Overall Height 3-15/16 in; Overall Length 3-1/8 in; Overall Width 2-1/2 in - Mounting Orientation: Horizontal or Vertical
