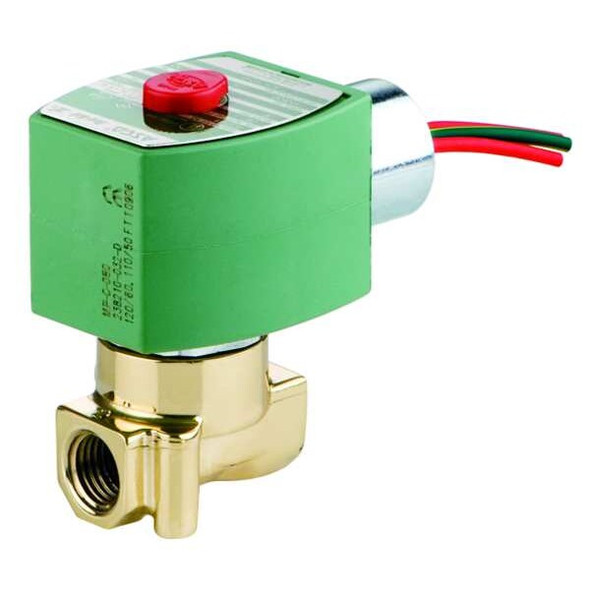

Asco 8262H020

The ASCO 8262H020 is a 2-way, 2-position solenoid valve with a normally closed configuration, designed for controlling the flow of air, inert gas, light oil, and water. It operates as a direct-acting valve and includes the coil and seal components necessary for operation. The valve is constructed with a brass body and has NPTF inlet and outlet connections with a nominal pipe size of 1/4 inch. Mounting orientation: Horizontal or Vertical. Ambient temperature range: 14°F to 140°F; Fluid temperature maximum: 180°F. IP66 enclosure rating; CSA and UL Listed. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed starting configuration - Operation Type: Direct Acting - Body Material: Brass - Connection Types: NPTF inlet and outlet, 1/4 in nominal pipe size - Orifice Diameter: 3/32 in - Flow Coefficient (Cv): 0.21 - Operating Pressure Differential (Maximum): 235 psi Air/Inert Gas, 160 psi Light Oil, 330 psi Water - Operating Pressure Differential (Minimum): 0 psi for Air/Inert Gas, Light Oil, and Water - Electrical: 12V DC voltage with 6.1 W wattage coil, 1/2 in conduit with 18 in leads - Coil Enclosure: Watertight without junction box; Coil Insulation Class H - Ambient Temperature Range: 14°F minimum to 140°F maximum - Fluid Temperature Maximum: 180°F - Mounting Orientation: Horizontal or Vertical - Environmental rating: IP66 enclosure; NEMA ratings 1, 2, 3, 3S, 4, 4X - Includes seal and coil - Overall Dimensions: Length 1-9/16 in, Width 1-11/16 in, Height 2-31/32 in - Response Time: 1 second - Seal Material: NBR (Buna-N)
