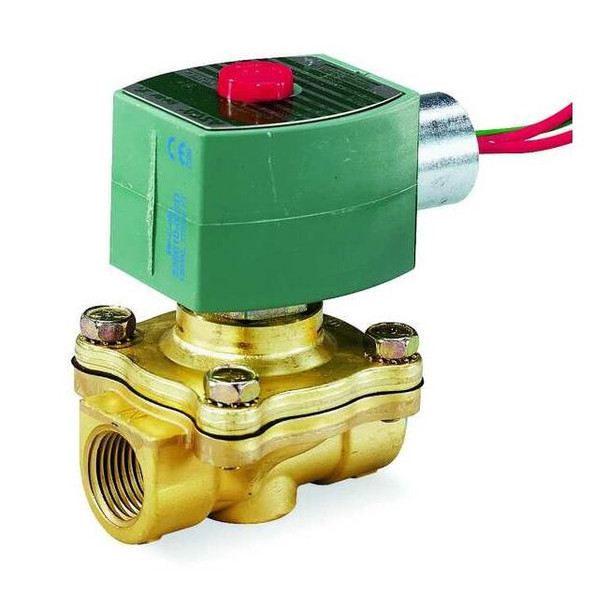

Asco 8210G094V

The ASCO 8210G094V is a pilot-operated, 2-way/2-position solenoid valve with a normally closed starting configuration, designed for controlling the flow of air, inert gases, and water. It features a brass body and is suitable for indoor and outdoor environments with an IP66 rating for protection against dust and water ingress. The valve operates with a nominal electrical supply of 120V AC at 50 or 60 Hz, incorporating a coil with Class F insulation. It has a high flow design with a 5/8 inch orifice diameter and a flow coefficient (Cv) of 4, Maximum differential pressure: 150 psi (Air, Inert Gas, Water). The valve mounts vertically and includes the coil and sealing components needed for application. Key Features: - Valve Design: 2-Way/2-Position, pilot operated - Starting Configuration: Normally Closed - Body Material: Brass - Orifice Diameter: 5/8 in - Flow Coefficient (Cv): 4 - Nominal Pipe Size: 1/2 in with NPTF inlet and outlet connections - Maximum Operating Pressure Differential: 150 psi (Air/Inert Gas, Water) - Operating Temperature Range: 14°F to 140°F ambient; fluid temperature up to 180°F - Electrical: 120V AC, 50/60 Hz; 10.1 W coil power; Class F coil insulation - Coil Enclosure: Watertight, without junction box; electrical connection via 1/2 in conduit hub - Environmental Rating: Indoor and Outdoor use; IP66 rated - Flow Coefficient (Cv): 4 - Mounting Orientation: Vertical - Seal Material: FKM - Includes: Coil and seal - Dimensions: Overall length 3-9/16 in; overall height 4-3/16 in; overall width 1-21/32 in - Response Time: 1 second - Standards: UL Listed
