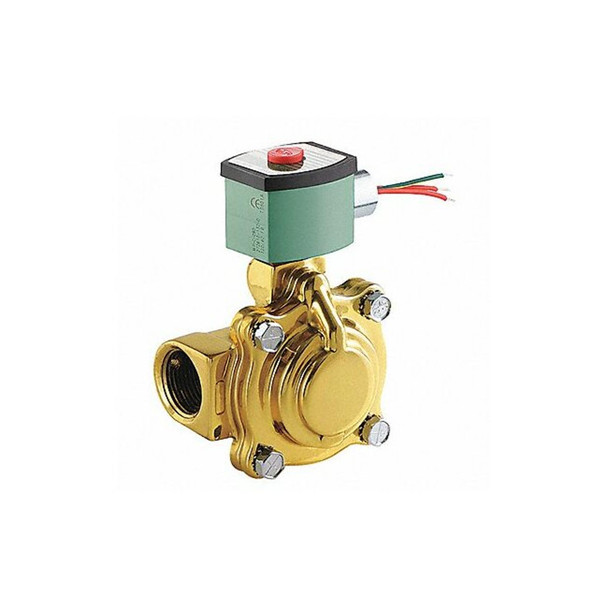

Asco 8210G022

The ASCO 8210G022 Solenoid Valve is a 2-Way, 2-Position pilot-operated valve with media compatibility: Air, Inert Gas, Light Oil, Water. It features a normally closed configuration. The valve includes the coil and seals required for operation. Mounting Orientation: Vertical; Environmental Rating: Indoor, Outdoor. Key Features: - Valve Design: 2-Way/2-Position, Pilot Operated - Valve Starting Configuration: Normally Closed - Media compatibility: Air, Inert Gas, Light Oil, Water - Operating Pressure Differential: Minimum 5 psi; Maximum 150 psi Air/Inert Gas and Water, 100 psi Light Oil - Fluid Temperature Maximum: 180°F - Ambient Operating Temperature Range: 14°F to 140°F - Electrical: 24V AC voltage, 6.1 W wattage, coil insulation class F, 50/60 Hz frequency - Coil enclosure: Watertight; Junction box: Not included - Valve Type: High Flow with an orifice diameter of 1-1/4 in and a flow coefficient (Cv) of 22.5 - Connections: Inlet and Outlet NPTF threaded ports, nominal pipe size 1-1/2 in, thread type NPT - Dimensions: 5-5/8 in height, 4 in length, 3-9/16 in width, center line pipe spacing 4-3/16 in - Seal Material: NBR (Buna-N) - Mounting Orientation: Vertical - Environmental Rating: Indoor, Outdoor; NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X; IP Rating: 66 - Response Time: 1 second - Certifications: UL Listed
