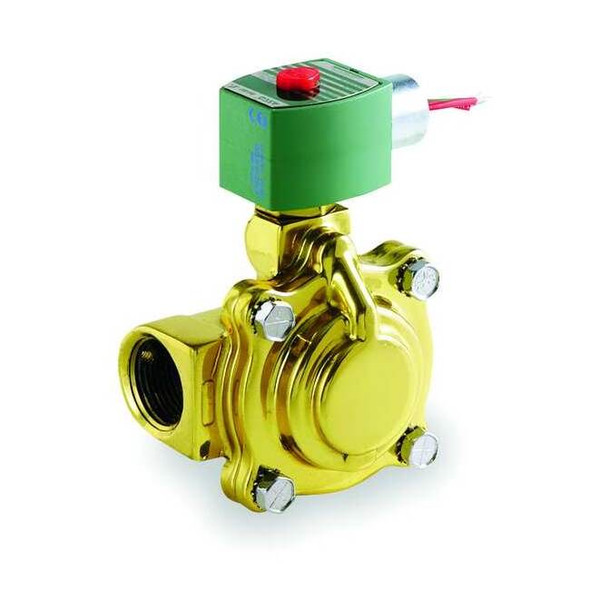

Asco 8210G008

The ASCO 8210G008 is a pilot operated, normally closed solenoid valve designed to control the flow of air, inert gas, light oil, and water. It features a brass valve body and includes the coil and seals necessary for operation. Nominal pipe size: 1-1/4 inches; Valve type: 2-way, 2-position; Operation: pilot operated; Starting configuration: Normally Closed. Key Features: - Valve Type: High Flow - Valve Design: 2-Way/2-Position - Operation Type: Pilot Operated - Valve Starting Configuration: Normally Closed - Media Compatibility: Air, Inert Gas, Light Oil, Water - Operating Pressure Differential: 5 psi minimum; 150 psi max for air/inert gas and water; 100 psi max for light oil - Coil Enclosure: Without Junction Box, Watertight - Coil Insulation Class: F - Electrical Connections: 1/2 in Conduit Hub - Voltage: 120V AC - Wattage: 6.1 W - Ambient Temperature Range: 14 to 140 Degrees F - Fluid Temperature Maximum: 180°F - Orifice Diameter: 1-1/8 in - Seal Material: NBR - Body Material: Brass - Mounting Orientation: Vertical - Inlet and Outlet Connection Type: NPTF - Center Line Pipe Distance: 4 in - Overall Dimensions: Length 4 in, Width 3-9/16 in, Height 5-5/8 in - Response Time: 1 sec - Environmental Rating: Indoor, Outdoor - IP Rating: 66 - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X - Includes: Coil and Seal - Standards: UL Listed
