Asco 8210G004LF 24-DC

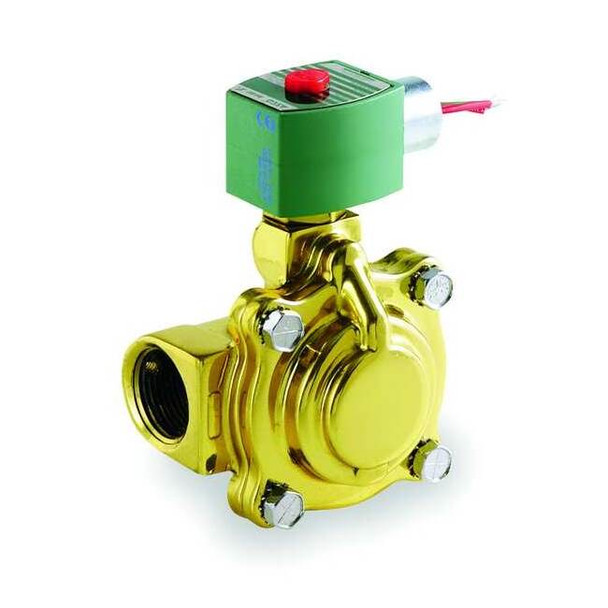

The ASCO 8210G004LF 24/DC is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body construction and operates with a 24V DC coil. The valve has a 1-inch nominal pipe size with NPTF inlet and outlet connections and a 1-inch orifice diameter. Intended for indoor and outdoor industrial use, this valve is designed for indoor and outdoor environments. Coil and seals included. Key Features: - Valve Design: 2-Way/2-Position with 2-Position actuator states - Operating Pressure Differential: 5 to 125 psi for air/inert gases, 5 to 100 psi for light oil, 5 to 150 psi for water - Temperature Ratings: Ambient 14°F to 140°F; Fluid temperature up to 180°F - Electrical: 24V DC voltage with 6.1 W coil wattage; includes coil with Class F insulation - Construction: Brass body material; seal material is NBR - Dimensions: Overall length 3-3/8 in; width 3-3/4 in; height 5-21/32 in - Mounting Orientation: Vertical - Environmental and Protection Ratings: IP65, NEMA 1, 2, 3, 3S, 4, 4X; rated for indoor and outdoor use - Electrical Connections: 1/2 in conduit hub - Response Time: Approximately 1 second - Compliance: Certified to CSA and UL standards - Coil Enclosure: Watertight
