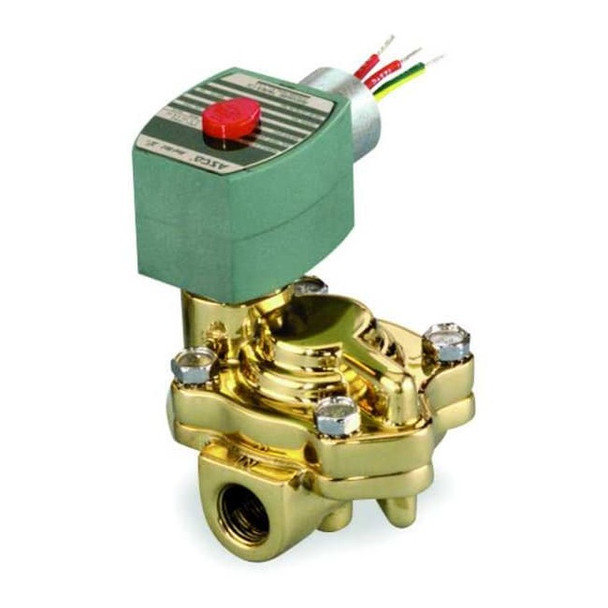

Asco 8221G011

The ASCO 8221G011 Solenoid Valve is a 2-Way/2-Position, pilot-operated valve designed to control the flow of water with a normally closed configuration. It is constructed with a brass body and features a slow-closing mechanism. This valve operates at 120V AC with a coil wattage of 6.1 W and includes both the coil and seals for installation. The valve also features an IP66-rated enclosure without a junction box, rated for use in corrosive, hazardous, indoor, and outdoor environments. Key Features: - Valve Type: Slow-Closing, Pilot Operated - Valve Design: 2-Way/2-Position, Normally Closed - Body Material: Brass - Nominal Pipe Size: 1-1/2 in with NPTF inlet and outlet connections - Orifice Diameter: 1-1/4 in - Flow Coefficient (Cv): 3 - Operating Pressure Differential (Water/Hot Water): 5 psi minimum, 150 psi maximum - Fluid Temperature Maximum: 180°F - Coil Insulation Class: F - Electrical Connections: 1/2 in conduit with 18 in leads - Includes Coil and Seal Material: NBR - Dimensions (Overall Length x Width x Height): 4-3/8 in x 4-1/4 in x 6-1/4 in - Environmental Ratings: Corrosive, Hazardous, Indoor, Outdoor - IP Rating: 66 - Standards: CSA, UL Listed - Wattage: 6.1 W - Center Line Pipe Center Size: 4-3/16 in - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
