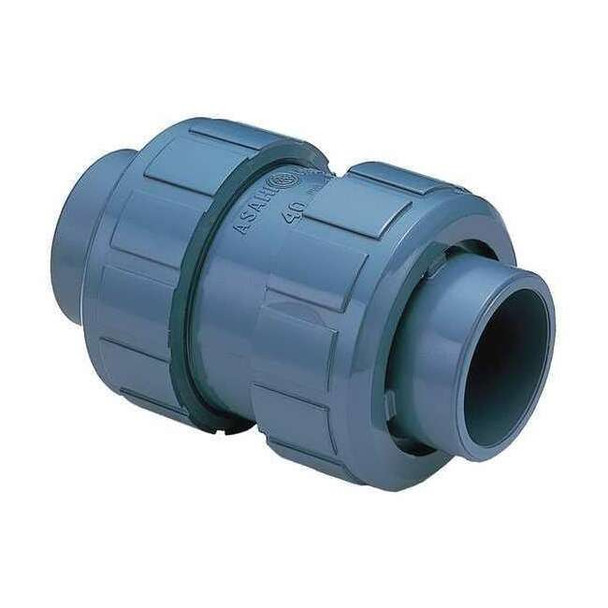

Asahi 1210010

ASAHI 1210010 is a 1 in. inline ball check valve with a PVC body and EPDM seat and seal materials. It uses a free-moving ball check mechanism for one-way flow control for general-purpose chemical and water service within stated material and rating specifications. Mounting orientation: horizontal or vertical. The valve is rated for operating temperatures from 30 Degrees F to 120 Degrees F. Key Features: 1 in. nominal valve size with 1 in. female union socket connections on both sides Inline ball check mechanism with single-flow design for one-way flow control PVC body construction EPDM seat and seal materials Connection type: Socket x Socket Cracking pressure: 1 psi Maximum operating pressure: 150 psi Maximum water pressure: 150 psi at 120 Degrees F Operating temperature range: 30 Degrees F to 120 Degrees F Mounting orientation: Horizontal or Vertical; mounting position: Any Cv: 25 Overall length: 4.37 in.; overall height: 2 49/64 in.; width: 2.76 in. Standards and certifications: ASTM D1784 Cell Class 12454A, NSF 61
