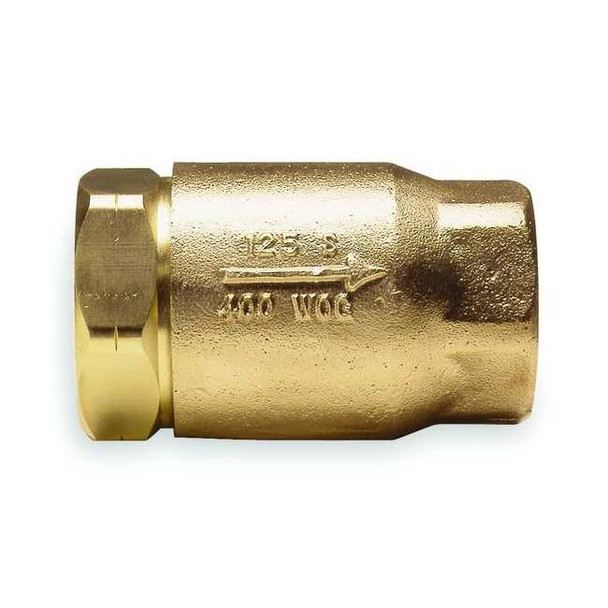

Apollo Valves 1-2" FNPT Bronze Ball Cone Spring Check Valve 6110301

The APOLLO VALVES 6110301 is a 1/2 in inline Ball Cone spring check valve for general purpose and steam service. It has a cast bronze body with FNPT x FNPT female connections, a spring-actuated ball check mechanism, and an RPTFE Ball Cone and seat for chemical and corrosion resistance. This valve is designed for straight-through flow and can be installed in horizontal or vertical lines with upward flow. Key Features of the APOLLO VALVES 6110301 Ball Cone Spring Check Valve: 1/2 in FNPT x FNPT connections: Female NPT threaded ends on both sides for inline piping. Ball Cone spring check mechanism: Spring-actuated design that helps control reverse flow. Bronze body: Cast bronze construction for plumbing and valve service. RPTFE Ball Cone and seat: RPTFE internal components for chemical resistance. Cracking pressure: 0.5 psi opening pressure. Pressure ratings: 400 psi non-shock CWP at 100 degrees F and 125 psi steam working pressure at 350 degrees F. Temperature range: 33 to 406 degrees F operating temperature. Mounting orientation: Can be installed horizontally or vertically. Flow coefficient: Cv 1.4. Factory tested: 100% factory tested. Standards: Build America Buy America Act, Buy American Act, and CRN. Dimensions: 2.31 in overall length and 1-1/8 in overall height.
