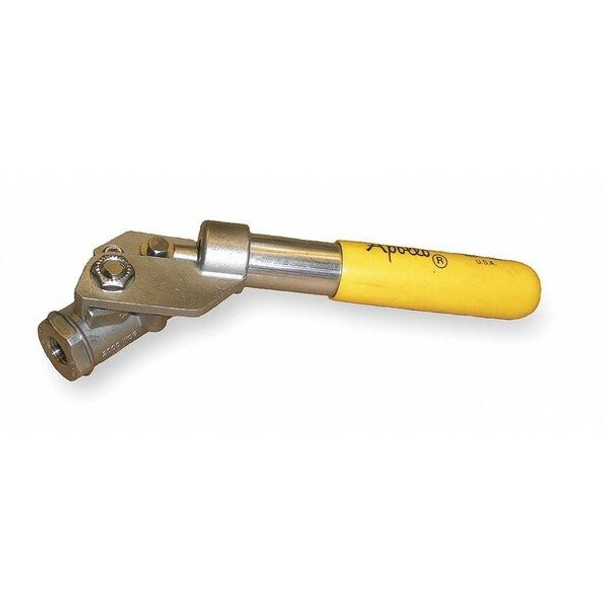

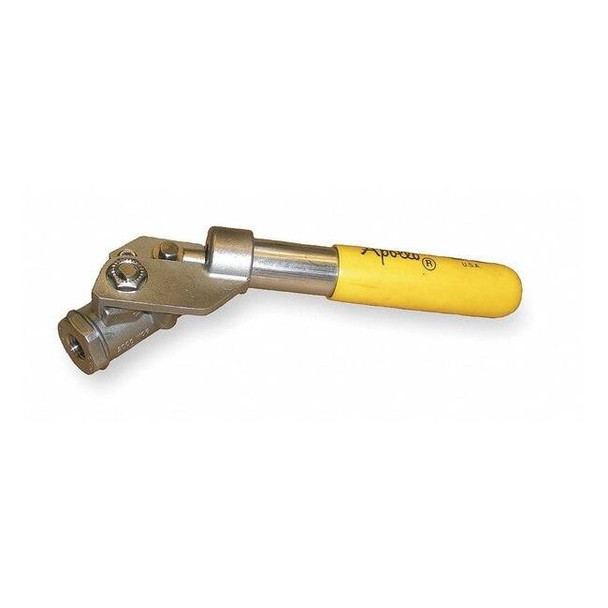

Apollo Valves 1-2" FNPT Stainless Steel Ball Valve Inline 7650301A

The APOLLO VALVES 7650301A is a 1/2 in manual 2-way ball valve from the 76-500 Series with a two-piece inline stainless steel body and standard port design. It has FNPT x FNPT female threaded connections, a 316 stainless steel ball and stem, and a spring-return lever handle. This valve is described for use with steam and water, with a pressure rating of 2,000 PSI CWP, 150 PSI WSP for steam, and an operating temperature range of -50 degrees to 500 degrees F. Key Features: Spring-return handle: Lever returns automatically; this model is described as spring return to close (-01). Stainless steel construction: Body, ball, stem, and lever components are stainless steel. Standard port: Provides a standard port flow path in a 1/2 in valve size. Connection type: 1/2 in FNPT x FNPT female threaded ends for inline installation. Seat and seal materials: MPTFE seats with PTFE seals; seats are carbon and graphite reinforced. Stem design: Blowout- stem with adjustable packing gland. Pressure and temperature ratings: Rated to 2,000 PSI CWP, 150 PSI WSP, and -50 degrees to 500 degrees F. Media and service: Listed for steam and water service, with a vacuum service rating of 29 in Hg. NACE standards: Meets NACE MR0175 (2000) and MR0103 (2012). Construction: Investment cast components and two-piece valve structure.
