Apollo Valves Manual 2-Way Ball Valve,NPT,Bronze 7010527

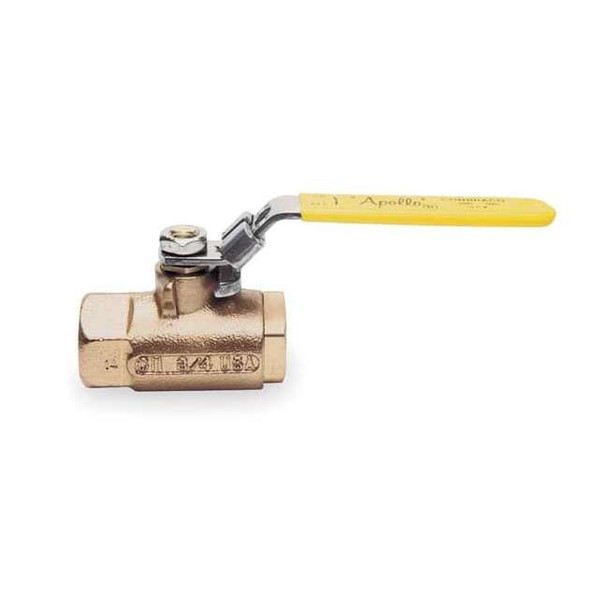

The APOLLO VALVES 7010527 is a 1 in manual ball valve in the Apollo 70 Series with a two-piece inline bronze body and standard port design. It has female NPT connections on both ends (FNPT x FNPT) for 2-way flow control. The valve is built with a chrome plated bronze ball, PTFE seat and seal materials, and a blowout brass stem. It is rated for steam service, with a maximum pressure of 600 PSI CWP, 150 PSI WSP, and a temperature range of -20 degrees to 450 degrees F. Key Features: 1 in FNPT x FNPT connections: Female NPT threads on both ends for inline installation. Two-piece bronze body: Inline valve structure with bronze body material. Standard port ball: Provides standard port flow path through the valve. Manual lever handle: Stainless steel lever handle with latch-lock feature. Locking handle: Handle can be locked in position during operation. Blowout stem: Brass stem design helps retain the stem under pressure. Chrome plated bronze ball: Ball material combines bronze construction with chrome plating. PTFE seats and seals: PTFE seat and seal materials are used at sealing surfaces. Pressure and vacuum ratings: Rated to 600 PSI CWP, 150 PSI WSP, and 29 in Hg vacuum service. Standards: MSS SP-110; also listed to ASTM B584-C84400 and CRN.
