Apollo Valves 7010501

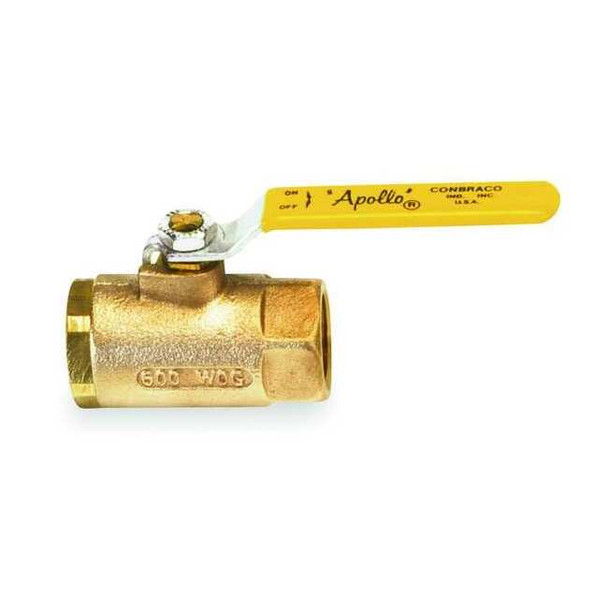

The APOLLO VALVES 7010501 is a 1 in manual ball valve from the Apollo 70 Series. It is a two-piece, inline, 2-way valve with female NPT connections on both ends (FNPT x FNPT) and a standard port. The valve body is bronze with a chrome plated bronze ball, PTFE seat and seal materials, and a brass blowout stem. It is designed for steam service and is factory tested. Key Features of the APOLLO VALVES 7010501 Ball Valve: 1 in FNPT x FNPT connections: Female NPT threads on both sides for threaded pipe installation. Two-piece inline body: Two-piece bronze body with a 2-way flow path. Standard port ball: Standard port design for general flow control. Manual lever handle: Lever-operated valve with a non-locking yellow handle made from PVC and zinc-plated steel. Blowout stem: Brass stem design helps retain the stem under pressure. PTFE seating and sealing components: PTFE seat and seal materials, with MPTFE stem packing and an adjustable stem packing gland. Pressure ratings: 600 PSI CWP and 150 PSI WSP. Temperature range: -20 to 450 degrees F, with a maximum operating temperature of 500 degrees F. Ball material: Chrome plated bronze ball for the valve closure component. Standards: MSS SP-110; also listed to ASTM B584-C84400, CRN, ARRA, BABA, and BAA.
