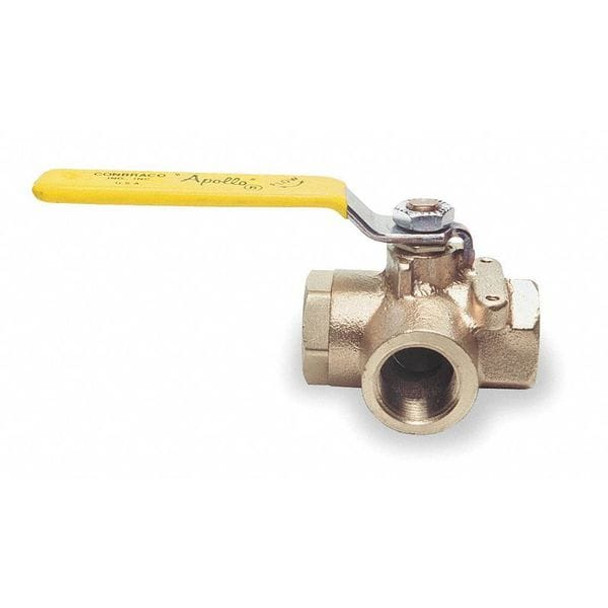

Apollo Valves Manual 3-Way Ball Valve,3-4",Bronze 7060401

The APOLLO VALVES 7060401 is a manual 3-way ball valve from the 70 Series with a standard port and L-flow diversion pattern. It has a two-piece bronze body, chrome-plated brass ball, and 3/4 in FNPT x FNPT x FNPT connections for water service. This valve is designed for tank selection and fluid transfer applications and includes a drilled and tapped mounting pad. Key Features: 3-Way Diverter: L-flow configuration directs flow between multiple ports for diversion applications. Standard Port: Provides standard port flow through the valve. Body and Ball Materials: Bronze body with a chrome-plated brass ball. Seat and Seal Materials: RPTFE seats and PTFE seal components are used in the valve. Stem Design: Blowout- brass stem with an adjustable packing gland. Connections: 3/4 in female NPT connections on all three ports. Pressure Rating: Rated to 400 PSI CWP. Temperature Range: -20 to 450 degrees F temperature range; 500 degrees F maximum operating temperature listed. Handle: Yellow zinc-plated steel lever handle; non-locking design. Mounting: Drilled and tapped mounting pad for actuator or accessory mounting. Valve Construction: Two-piece, manual ball valve design. Standards: ISO 9001, CRN, Build America Buy America Act (BABA), and Buy American Act (BAA).
