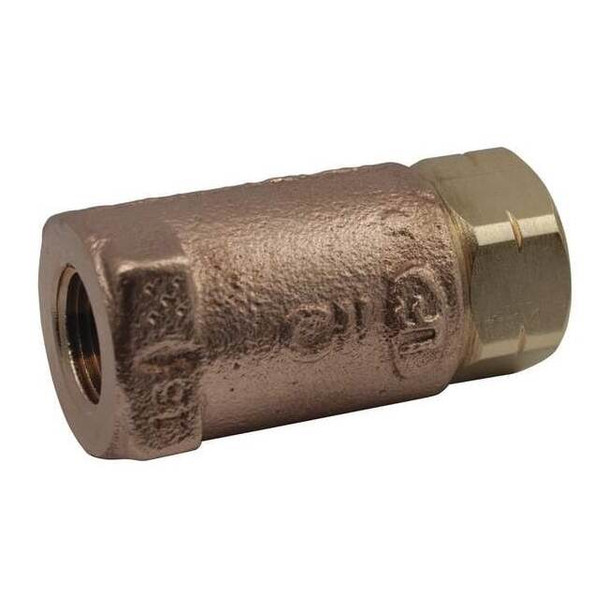

Apollo Valves 3-8" FNPT Lead Free Bronze Ball Cone Check Valve 61LF50201

The APOLLO VALVES 61LF50201 is a 3/8 in inline check valve with FNPT x FNPT female threaded connections. It features a lead-free bronze body with an inline ball cone design and poppet mechanism for one-direction flow, and closes in response to reverse-flow conditions in general-purpose water and steam systems. The valve supports horizontal or vertical mounting and has a 0.5 psi cracking pressure with a rated flow of 1.21 gpm. Key Features: Valve type: Check valve with inline ball cone body design Size and connections: 3/8 in nominal size with 3/8 in FNPT x FNPT female NPT connections Body material: Lead-free bronze Internal materials: Poppet mechanism, EPDM seat and seal material, and 316 stainless steel spring Pressure ratings: 400 psi maximum water pressure, 400 psi operating pressure, and 15 psi WSP maximum steam pressure Temperature range: 33 degrees F minimum operating temperature; maximum temperature rating: refer to manufacturer specifications for applicable service conditions Flow performance: 1.21 gpm flow rating with 0.5 psi cracking pressure Mounting orientation: Horizontal or vertical Certifications and standards: Meets multiple NSF and CRN certifications Dimensions: 2.31 in overall length; 1 3/25 in overall height and width
