Manufacturer Varies 1-1-4" FNPT SS Threaded Flange 4381006030

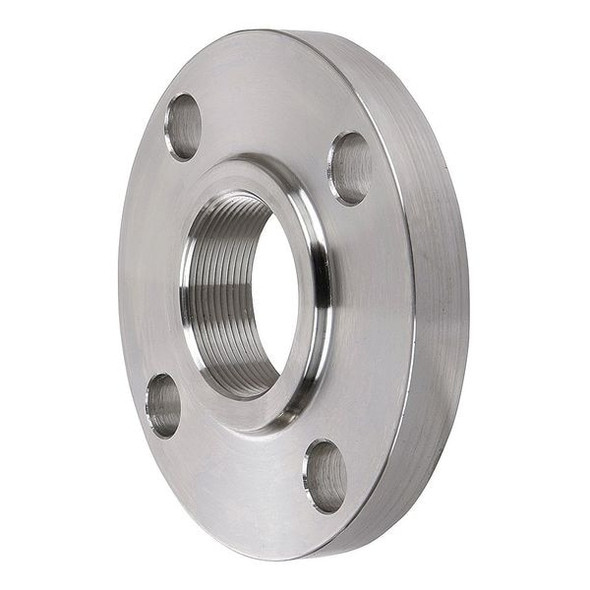

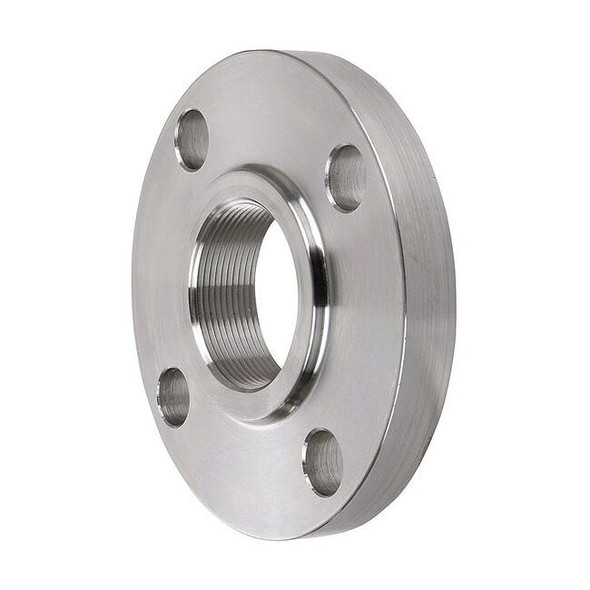

The ZORO SELECT - 4381006030 is a forged stainless steel threaded flange suitable for creating bolted flange connections within specified parameters by screwing the internal threads onto the male threads of a pipe. Made from forged 316/316L stainless steel, this flange has corrosion- material suitable for use within systems operating at pressures up to specified limits; not intended as a guarantee of performance under all conditions. It features a raised face connection surface and is suitable for assembling and disassembling piping systems with nominal pipe size 1 1/4 inches, meeting the nominal pressure rating of Class 300 as per applicable standards. Key Features: - Material: Forged 316/316L stainless steel - Type: Threaded flange with internal threads (FNPT connection) - Nominal pipe size: 1 1/4 in - Pressure rating: Class 300 with a maximum operating pressure of 720 psi - Maximum steam pressure: 300 psi at specified temperature conditions - Flange dimensions: 5 1/4 in outside diameter, 3/4 in thickness, and 1 1/16 in overall length - Bolt configuration: 4 bolt holes, each 3/4 in diameter, with a bolt circle diameter of 4 1/2 in - Connection surface: Raised face - Standards: ASTM-SA182; ANSI B16.5; ASME B1.20.1
