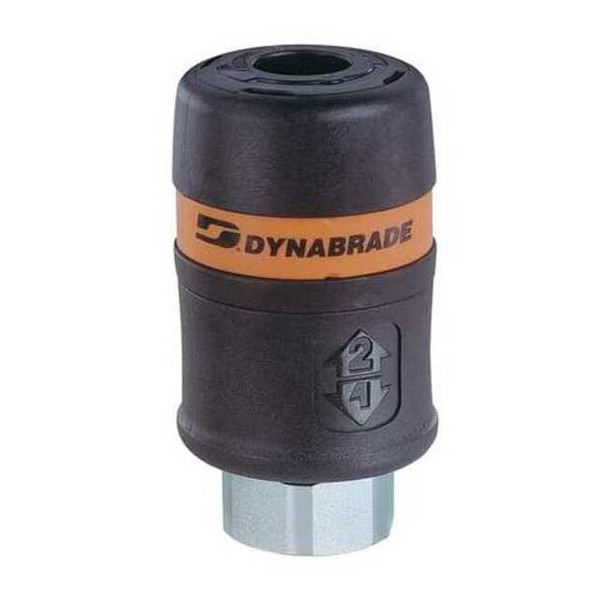

Dynabrade Coupler, Mega-Flow, 1-4, Composite 97566

The DYNABRADE - 97566 is a hose coupling designed to provide a push/pull locking mechanism for hose connection and disconnection. It uses a push/pull locking mechanism with a safety vent feature, providing a sealed and leak- joint for fluid or air lines. The fitting is constructed from composite material, finished with a composite coating, and is primarily black in color. It includes an integrated flush face valve and has a 1/4 in nominal body and coupling size, with female hose fitting and a 1/4" -18 thread size utilizing the NPT connection type. Compatible with interchange types 95677, 96005, and 95675, and is compatible for use with air powered tools. Key Features: - Body Size and Coupling Size: 1/4 in nominal diameter. - Hose Fitting Gender: Female. - Connection Type: NPT threads. - Includes Valve: Yes, with a flush face valve type. - Coupling Locking Type: Safety Vent mechanism. - Max. Flow Rate: 1,558 liters per minute. - Maximum working pressure (measured at 70°F): 175 psi. - Overall Length: 2 in. - Material and Finish: Composite construction with composite coating. - Color and Color Code: Black. - Compatible Interchange Types: 95677, 96005, 95675.
