Aignep Usa 87000-06-04

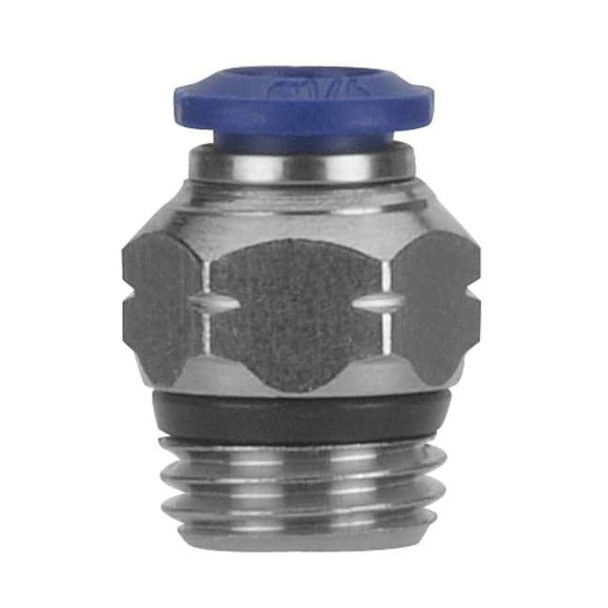

The AIGNEP USA - 31082293, categorized as a "Push On Hose Fitting," is designed for use in air applications. With a connector-type adapter and a straight fitting shape, this fitting comes in a silver finish, which is attributed to its primary construction material of nickel-plated brass. The fitting's geometric design allows for the accommodation and sealing of a variety of tube materials including copper, nylon, polyethylene, and polyurethane through its connection types: push-to-connect and universal. Key Features: - Connection type: Push-to-Connect x Universal, suitable for both ends of the hose fitting. - Body Material: Constructed with Nickel-Plated Brass. - Compatible Tube Materials: Compatible with Copper, Nylon, Polyethylene, Polyurethane tube materials. - Fitting Side 1 Tube Outer Diameter: 3/8 in and Fitting Side 2 Pipe Size: 1/4 in, representing the dimensions of connection points. - Operating Pressure - Maximum: The maximum pressure this product can sustain is 290 psi. - Operating Temperature - Maximum: 160 Degrees F and Minimum: 0 Degrees F, indicating the operational temperature range for this fitting. - Standard Compliance: Compliant with the following standards: ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE.
