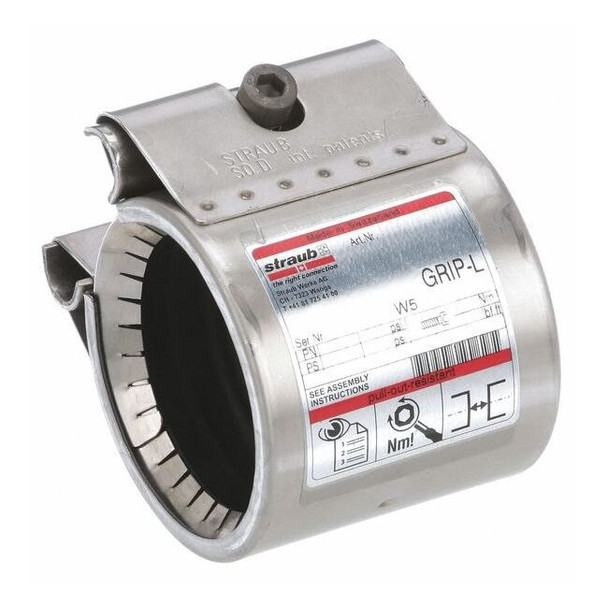

Straub G20200-SI

The STRAUB - G20200-SI is a stainless steel Grip L pipe coupling designed to join two pipes or tubes in a straight line, creating a continuous flow path. Constructed from 316 stainless steel with a polished finish, this coupling includes an EPDM gasket to form a seal without welding up to the maximum rated operating pressure of 232 psi. It accommodates limited axial movement and misalignment, operating within a temperature range of -4 to 212 degrees Fahrenheit and a maximum pressure of 232 psi. Compatible with air, water, hydrocarbons, and chemical products within the specified temperature and pressure limits. Key Features: - Material grade: 316 stainless steel with polished finish for corrosion resistance - Nominal pipe size: 1-1/4 inches - Overall length: approximately 2-3/8 inches (2 13/32 inches fitting length) - Includes EPDM gasket - Bolted housing with two 6mm hex bolts made of 316 stainless steel - Maximum operating pressure: 232 psi - Temperature range: -4 to 212 degrees Fahrenheit - Compliant with low lead certification standards - Conforms to ASTM 1476, TY2, CL2 or CL3 standards - Vacuum rating: 28 inches of Hg
