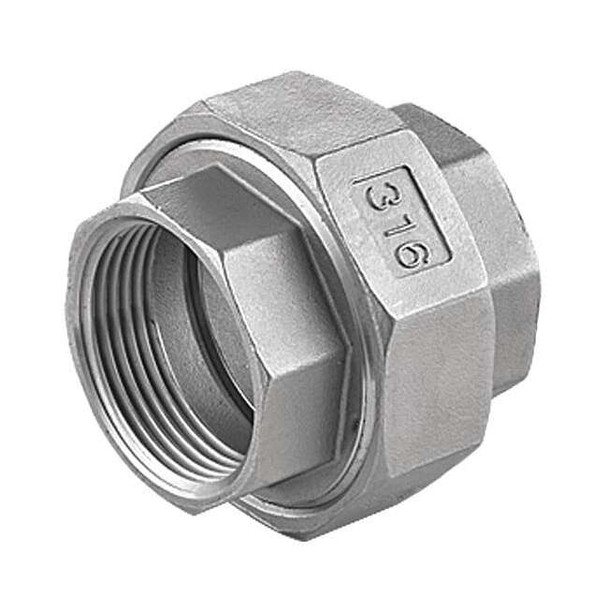

1 in FNPT 316 Stainless Steel Threaded Union, Class 150, 300 psi Max Pressure 600U111N010

The ZORO SELECT - 600U111N010 is a stainless steel pipe union designed to join two 1-inch female NPT threaded pipe ends without rotating the connected pipes. Constructed from 316 stainless steel, this union is rated for Class 150 pressure. The fitting has a maximum operating pressure of 300 psi and is compliant with low-lead requirements for potable water systems. It has hex wrenching surface; overall length approximately 47.5 mm; hex wrench size 52.5 mm. Key Features: - Material: 316 Stainless Steel, corrosion- alloy. - Connection Type: NPT female threads on both sides. - Nominal Pipe Size: 1 inch for both Side A and Side B. - Pressure Rating: Class 150 with a maximum operating pressure of 300 psi and maximum steam pressure of 150 psi. - Pipe Schedule Compatibility: Schedule 40. - Standards: Meets ANSI Standards B1.20.1 for threads and Class 150 pressure rating. - Includes no pre-applied thread sealant or additional sealing components. - Dimensions: Overall length approximately 47.5 mm; hex wrench size 52.5 mm.
