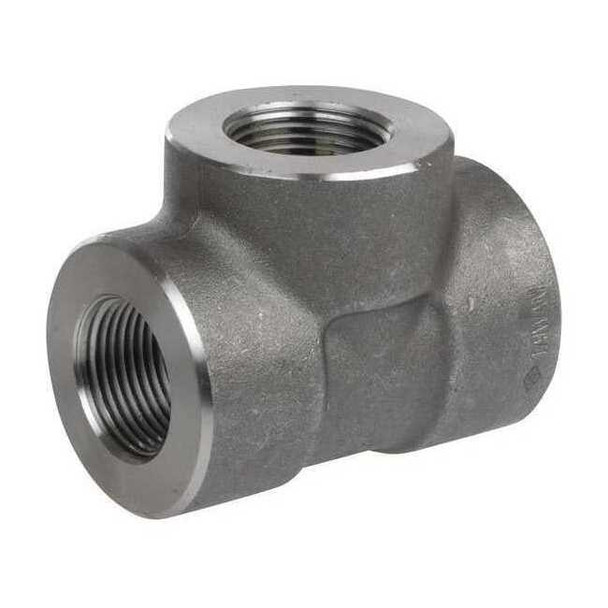

Manufacturer Varies 1" FNPT 304 SS Threaded Tee 2UA93

The ZORO SELECT - 2UA93 is a stainless steel Tee pipe fitting constructed from 304 stainless steel material. Designed to join three pipe runs in a T-shaped configuration, it enables fluid or gas flow to be split or combined with a 90° branch. This fitting features female National Pipe Thread (NPT) connections on all three ends, each with a nominal pipe size of 1 inch and thread pitch of 11 1/2. Designed to operate within specified pressure and temperature ranges; compliant with ASTM-A-182, ANSI/ASME B1.20.1, and ASME B16.11 standards. Key Features: - Shape: Tee fitting to join three pipes at 90° branch. - Material: 304 Stainless Steel. - Connection Type: Female NPT on all three sides (A, B, and C). - Nominal Pipe Size: 1 inch on all connection sides. - Thread Size: 11 1/2 TPI on each connection. - Pressure Rating: Class 3000, supporting up to 3000 psi at 100°F. - Maximum Steam Pressure: 2500 psi at 350°F. - Standards: ASTM-A-182 for materials, ANSI/ASME B1.20.1 for threads, and ASME B16.11 compliance. - Does not include pre-applied thread sealant or additional sealing components.
