Manufacturer Varies 2UA58

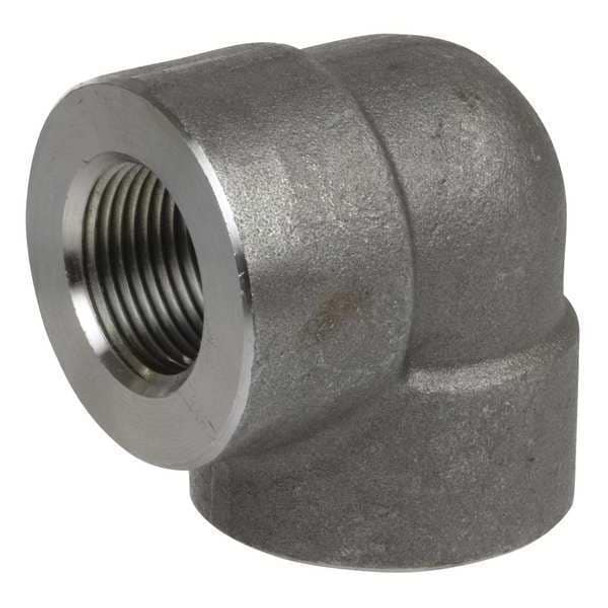

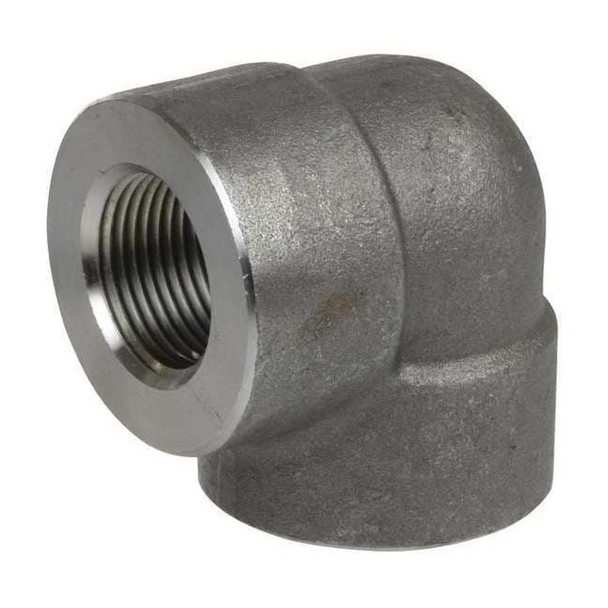

The ZORO SELECT - 2UA58 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes at a right angle (90°) to change flow direction. It is constructed from 304 stainless steel and features female National Pipe Tapered (FNPT) threaded connections on both ends, sized at 3/4 inch. This fitting is rated for a maximum pressure of 3,000 psi at 100°F and a maximum steam pressure of 2,500 psi at 350°F, as specified in product documentation. The elbow is classified as Class 3000 according to industry standards, and meets ASTM-A-182 material standards as well as ANSI/ASME B1.20.1 thread and ASME B16.11 fitting standards. Key Features: - Fitting shape: 90 Degree Elbow for a right-angle change in piping direction. - Material: 304 Stainless Steel for corrosion resistance and strength. - Connection type: Female NPT threaded ends on both sides. - Nominal pipe size: 3/4 inch for both connection ends. - Pressure rating: Class 3000 according to industry standards. - Max steam pressure: 2,500 psi @ 350°F. - Thread size: 14 threads per inch on both connections. - Includes no pre-applied thread sealant or sealing components. - Meets ASTM-A-182, ANSI/ASME B1.20.1, and ASME B16.11 standards.
