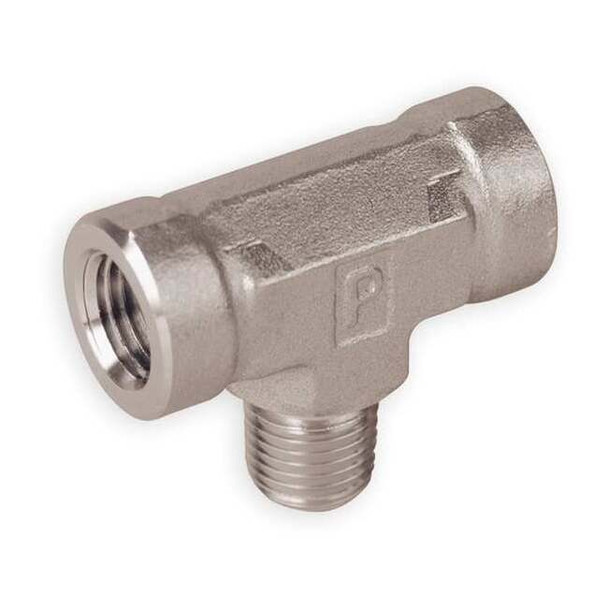

Parker Tee, SS, Thrd 1-2", Thrd 1-2", Thrd 1-2" 8-8-8 MBT-SS

The PARKER - 8-8-8 MBT-SS is a branch tee stainless steel pipe fitting designed to connect three 1/2 inch pipe runs with a 90° branch, facilitating the splitting or combining of flow. Constructed from 316 stainless steel, it is compatible with air, natural gas, and oil within the specified pressure and temperature ratings. The fitting features threaded NPT connections with female threaded ends on Side A and Side B and a male threaded end on Side C. It has an overall length of approximately 2 7/16 inches and is silver in color. Key Features: - Material: 316 stainless steel. - Connections: FNPT x FNPT x MNPT (female on Side A and B, male on Side C) with 1/2 inch nominal pipe size on all connections. - Pressure Rating: Maximum operating pressure of 4,500 psi. - Temperature range: -425 Degrees to 1200 Degrees F. - Thread Size: 1/2-14 NPT threads at all connection ends. - Wrench Size: Hex size of 1-1/16 inches for installation support. - Standards Compliance: Designed to meet ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards. - Does not include pre-applied thread sealant or additional seals.
