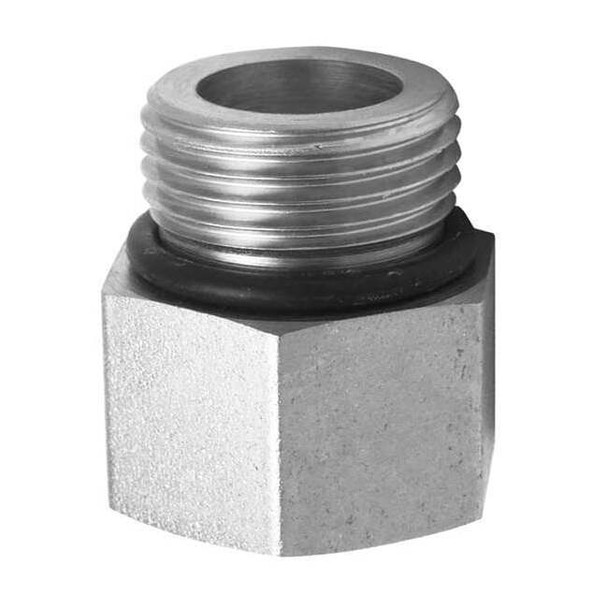

Parker 9-16-18 x 1-4" SAE-ORB x FNPT 316 SS Pipe Adapter 6-1-4 F5OG-SS

The PARKER - 6-1/4 F5OG-SS is a stainless steel pipe adapter designed to join two components with differing connection types and sizes, specifically an SAE-ORB male connection sized 9/16"-18 and an NPT female connection sized 1/4". It features 316 stainless steel construction. It conforms to SAE J1926-1 and SAE J514 standards and supports the following specifications: Maximum operating pressure: 6,000 psi; Temperature range: 30 to 250 Degrees F. The fitting includes a nitrile elastomer seal; no pre-applied thread sealant. Key Features: - Material: 316 stainless steel. - Connection types: SAE-ORB male (9/16"-18) to NPT female (1/4"). - Maximum operating pressure: 6,000 psi; Temperature range: 30 to 250 Degrees F. - Nitrile elastomer seal included; no pre-applied thread sealant. - Hex size for wrench: 3/4". - Overall length: 1 1/8 in. - Standards: SAE J1926-1, SAE J514.
