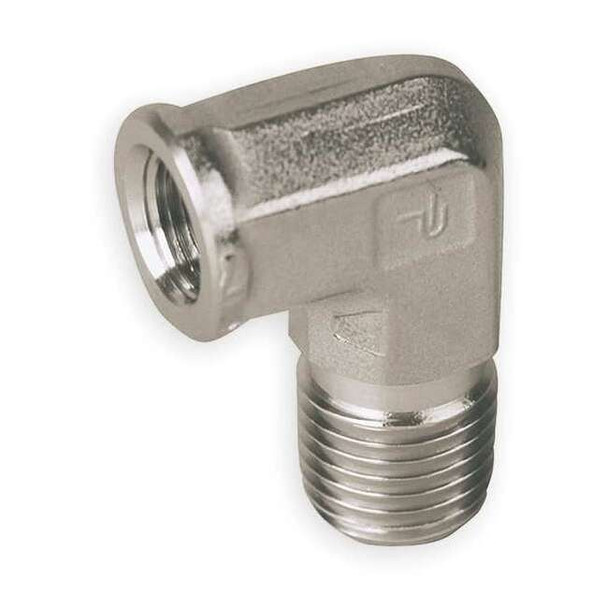

Parker 6-6 SE-SS

The PARKER - 6-6 SE-SS is a 90 Degree Street Elbow stainless steel pipe fitting that changes flow direction by 90° through its elbow shape. It features one male (street) NPT connection and one female NPT connection, both sized 3/8 inch nominal pipe size with 3/8-18 thread size. Made from 316 stainless steel; suitable for air, natural gas, and oil service per listed applications. Overall length: 2 3/16 in; enables direct connection between MNPT and FNPT ends without requiring a short nipple. The fitting is rated for a maximum operating pressure of 5,000 psi and can operate within a temperature range of -425 to 1200 Degrees F. It complies with ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards. Key Features: - Material: 316 Stainless Steel - Connection Type: MNPT x FNPT (Male NPT to Female NPT) - Nominal Pipe Size: 3/8 in on both ends - Thread Size: 3/8-18 - Maximum Operating Pressure: 5,000 psi - Temperature Range: -425 to 1200 Degrees F - Hex Size: 7/8 in for wrenching - Overall Length: 2 3/16 in - Pre-Applied Thread Sealant: No - Seal Included: No - Applications: Air, Natural Gas, Oil - Product Standards: ANSI B31.1; ANSI B31.3; ANSI B1.20.1
