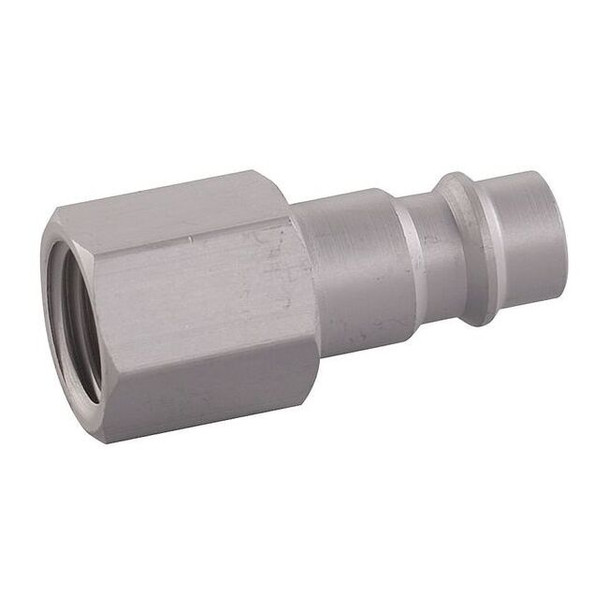

Speedaire Coupler Plug,(F)NPT,3-8,Aluminum 30E616

The SPEEDAIRE - 30E616 is a quick connect hose coupling designed for use on the end of a hose or tool inlet to enable rapid, tool-free attachment and detachment. It is a plug-type coupling compatible with quick couplers and suited for pneumatic and fluid transfer applications. Constructed from aluminum with an anodized finish, this coupling is rated for fluid-tight connection when used within the specified pressure and temperature ranges without an integrated valve, configured for rapid, tool-free attachment and detachment. It has a rated maximum flow rate of 1,415.84 lpm at a maximum working pressure of 300 psi at 70°F, is rated for operation within a temperature range of -40°F to 200°F. Key Features: - Material: Aluminum with anodized coating for surface treatment. - Connection type: NPT thread with 3/8"-18 thread size and female hose fitting gender. - Coupling size and body size: 1/4 in nominal diameter. - Seal material: Buna-N providing a fluid-tight seal. - Hose fitting size: 3/8 in fitting connection. - Designed as a quick connect plug compatible with quick couplers. - Application: Suitable for connection at the end of hose or tool inlet. - Interchange type: Global Style High Flow standard. - Maximum flow rate: 1,415.84 lpm. - Maximum working pressure: 300 psi @ 70°F. - Operating temperature range: -40°F to 200°F. - Does not include a valve component.
