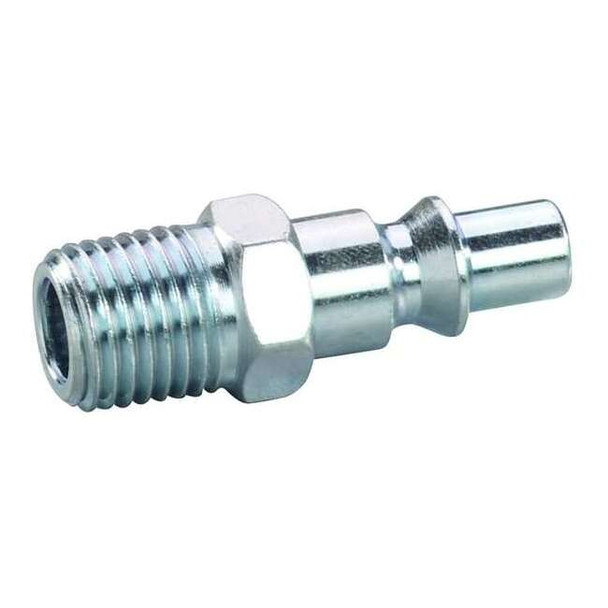

Speedaire Quick Connect,Plug,1-4" Body,1-8"-27 30E716

The SPEEDAIRE - 30E716 is a quick connect hose coupling designed for rapid, tool-free connection and disconnection of hoses or equipment using an ARO interchange standard. It includes a push/pull locking mechanism for securing the connection to compatible couplers within the specified pressure and temperature ratings, provides a sealed connection when used with compatible mating components per specified pressure/temperature ratings. This steel coupling is compatible with ARO interchange couplers and is intended for installation at the end of a hose or tool inlet using the specified thread connection. It is compatible for use with air and fluid systems within the specified pressure and temperature ranges. Key Features: - Coupling component: Plug with male hose fitting gender. - Connection type: 1/8" -27 NPT threads. - Body and coupling size: 1/4 in nominal diameter. - Hose fitting size: 1/8 in. - Material: Steel construction with zinc-plated finish. - Seal material: Buna-N for fluid or pressure sealing. - Maximum flow rate: rated maximum flow rate: 1,132.67 L/min (based on compatible line sizes and conditions). - Maximum working pressure at 70°F: maximum working pressure at 70°F: 300 psi (when used within specified temperature range and with compatible components). - Operating temperature range: -40°F to 150°F. - Color: Silver. - Does not include an integrated valve.
