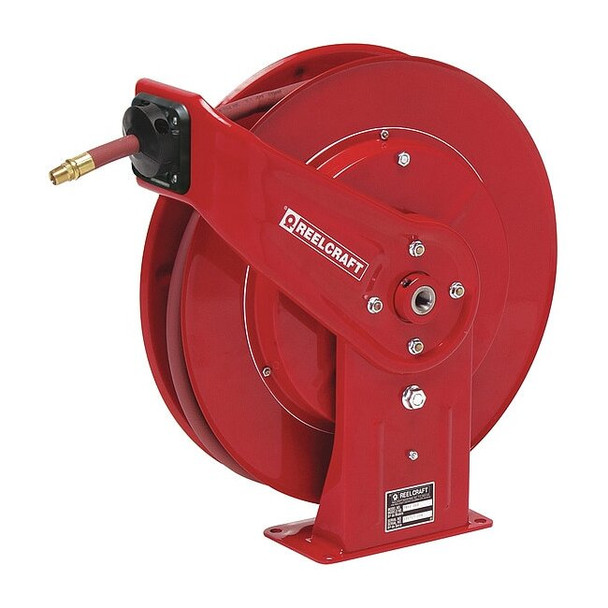

Reelcraft Hose Reel 1-2 Hose 7850 OLP121

The REELCRAFT 7850 OLP121 is a spring return hose reel with a 50 ft x 1/2 in I.D. PVC hose for air or water service. It is a stationary, open-style reel made from carbon steel with a powder-coated finish, and it can be mounted on a ceiling, floor, wall, or vehicle. The inlet hose is routed into the base to reduce stress on the swivel, and the guide arm can be adjusted to seven positions. Key Features: Spring return drive: Automatically retracts the hose onto the reel. Included hose: Comes with a red 1/2 in x 50 ft PVC hose and hose stop bumper. Application: For air and water service only. Pressure and temperature limits: Rated for up to 300 psi, with an operating temperature range of 32 to 150 degrees F. Reel construction: Carbon steel reel with powder-coated components and corrosion- design. Mounting options: Can be used as a ceiling, floor, wall, or vehicle mount reel. Guide arm: Single guide arm adjusts to seven positions to suit mounting orientation. Connections: 1/2 in NPT x NPT fittings; hose ends are 1/2 in male NPT brass fittings. Swivel: Nickel-plated steel swivel with 1/2 in female inlet and 1/2 in male outlet. Base and mounting: Stationary base with four 1/2 in mounting holes; mounting hole centers are 7 13/16 in high x 3 7/8 in wide. Dimensions: 19 3/4 in L x 7 in W x 20 1/4 in H; reel width is 7 in and reel diameter is 9 in. Bearing construction: Permanently lubricated bearings.
