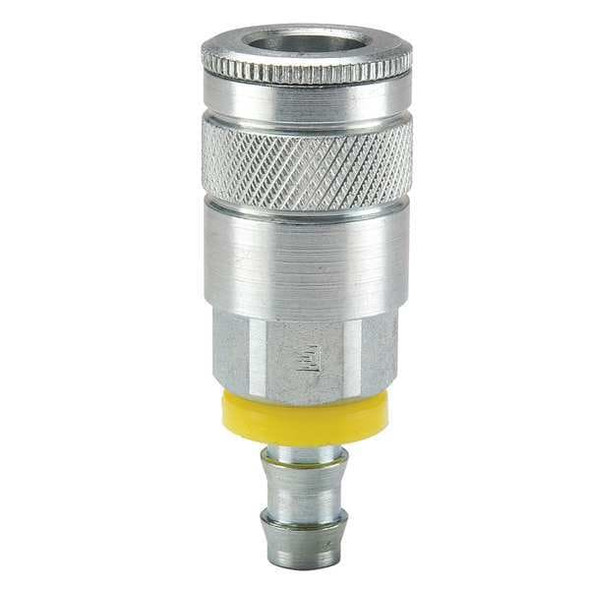

Parker Quick Connect,Socket,3-8" Body,3-8" Barb 24-5BP

The PARKER - 24-5BP hose coupling is designed for pneumatic applications. It provides connection and disconnection of hoses or equipment using a sleeve locking mechanism. Constructed from steel with a trivalent chrome finish, this coupling is compatible with 3/8 inch hose inner diameters and features a barbed male hose fitting. The coupling includes a tubular valve for air flow control and has a rated for a maximum working pressure of 300 psi at 70°F, rated maximum flow rate: 1,415.84 liters per minute. Compatible with pneumatic fluid/air line applications using 3/8 inch hose inner diameter and rated within the specified pressure and temperature ranges. Key Features: - Application: Pneumatic - Hose Barb connection type with male fitting gender - Barb size and hose fitting size: 3/8 in - Coupling size and body quick connect air coupling size: 3/8" - Coupling component: Socket - Coupling locking type: Sleeve - Includes tubular valve for flow control - Material: Steel with trivalent chrome finish - Seal material: Nitrile - Rated for a maximum working pressure of 300 psi at 70°F - Rated maximum flow rate: 1,415.84 lpm - Temperature range: -40°F to 250°F - Overall length: 2.88 in - Max outside diameter: 1 1/16 in - Interchange type: Industrial
