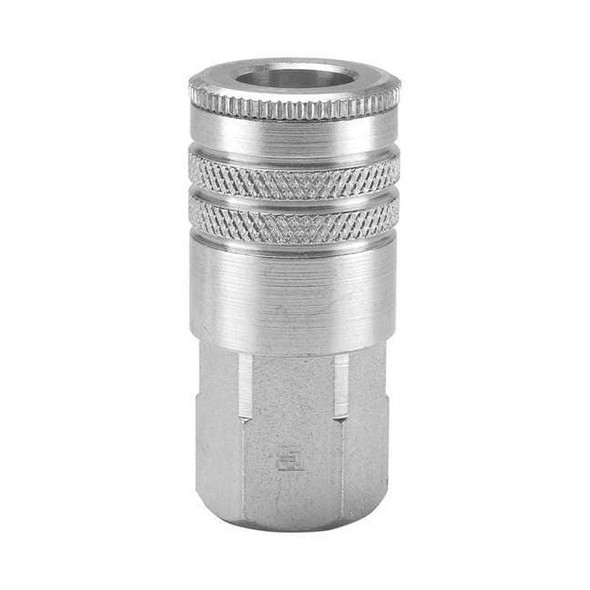

Parker Quick Connect,Socket,1-4" Body,1-4"-18 B33

The PARKER - B33 is a quick connect hose coupling designed for pneumatic applications, is configured for push-to-connect operation for connection and disconnection without tools. Constructed from brass with nitrile seals, it forms a sealed connection for pneumatic air flow (when properly installed and within specified pressure/temperature ranges). The coupling uses a push-to-connect locking mechanism (rated parameters: 300 psi @ 70°F; temperature range -40°F to 250°F) and includes a tubular valve to control air flow. It is rated for a maximum working pressure of 300 psi @ 70°F and has a rated temperature range of -40°F to 250°F, intended for pneumatic applications. The coupling has a 1/4 inch body size and hose fitting size, with a female hose fitting gender and a 1/4"-18 thread size with NPT connection type. Key Features: - Application: Pneumatic - Material: Brass - Coupling component: Socket - Coupling locking type: Push-to-Connect - Includes valve: Yes, tubular type - Rated maximum flow rate: 25 pcm - Maximum working pressure: 300 psi @ 70°F - Overall length: 1.94 inches - Maximum outside diameter: 1.188 inches - Seal material: Nitrile - Temperature range: -40°F to 250°F - Connection type: Female NPT, 1/4"-18 thread size
