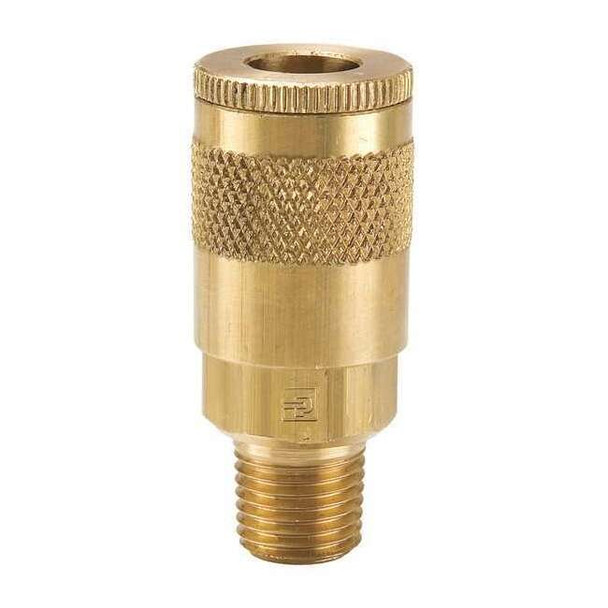

Parker Quick Connect,Socket,1-4" Body,1-4"-18 B12

The PARKER - B12 is a brass quick connect hose coupling. It features a 1/4 inch NPT male hose fitting and a 1/4 inch coupling size, compatible with Tru-Flate-Automotive interchange types. The coupling uses a sleeve locking mechanism and includes a tubular valve, enabling connection and disconnection of air lines using a sleeve locking mechanism; leakage characteristics are based on system configuration and proper installation. Maximum working pressure rating is 300 psi at 70°F and the flow rate is rated up to 707.92 liters per minute for compatible pneumatic systems. Key Features: - Material: Brass construction for the coupling body. - Application: Suitable for pneumatic systems. - Hose Fitting Gender and Size: Male, 1/4 inch thread size (1/4"-18). - Connection Type: NPT thread standard. - Coupling Component: Socket type with sleeve locking. - Includes Valve: Yes, with a tubular valve design. - Maximum Working Pressure: 300 psi at 70°F. - Maximum Flow Rate: 707.92 liters per minute. - Temperature Range: temperature rating: -40°F to 250°F (for rated operation). - Seal Material: Nitrile used for sealing elements. - Overall Length: 2.06 inches. - Maximum Outside Diameter: 15/16 inch.
