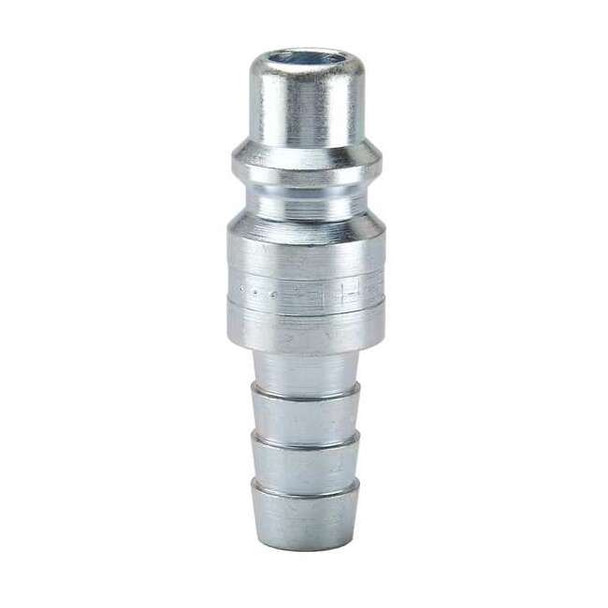

Parker Coupler Plug,Steel,Hose Barb,25 cfm H8C-D

The PARKER - H8C-D is a pneumatic hose coupling for connection of compressed air lines. It uses a push/pull locking mechanism for connection and disconnection without tools. It serves as the male plug component in an industrial interchange system and provides a sealed connection when properly installed for compressed air lines. This coupling is rated to connect to hoses with a 5/16 in inner diameter (hose I.D.) and provides a nominal connection size of 1/4 in. Constructed of steel with a trivalent chrome finish, the fitting is intended for pneumatic service within the specified temperature range. It has an operating temperature range of -40°F to 250°F. Key Features: - Coupling component type: Plug (male fitting) - Connection type: Hose barb with a 5/16 in barb size to fit hose I.D. of 5/16 in - Body and coupling size: 1/4 in nominal - Material: Steel with trivalent chrome finish for surface treatment - Maximum flow rate of 707.92 liters per minute - Maximum working pressure of 300 psi at 70°F - Overall length of 1.94 in (1 15/16 in) - Maximum outside diameter of 1/2 in across the widest feature - Application: Pneumatic systems using industrial interchange standard - Does not include an integrated valve
