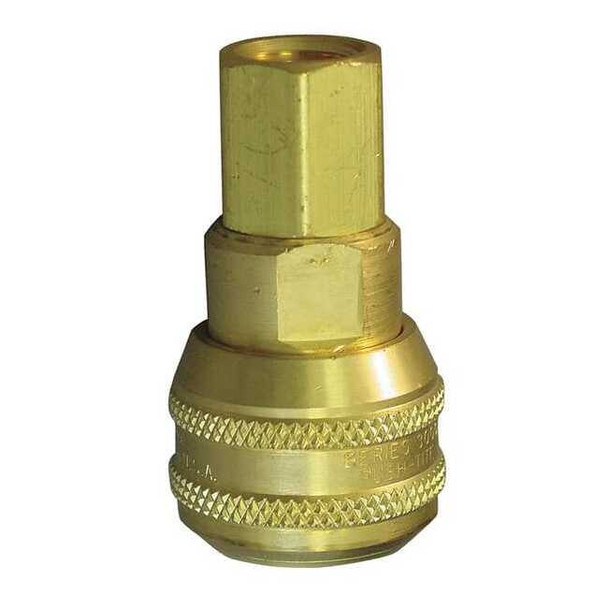

Weatherhead Coupler Body,(F)NPT,1-2,Brass 5200

The WEATHERHEAD - 5200 is a quick connect hose coupling that couples provides push-to-connect locking for hose connection and disconnection without requiring tools (as specified by push-to-connect design). It is sealed using Nitrile (Buna-N) seal material and is compatible with air tools and pneumatic/industrial hose systems that meet the specified pressure, temperature, and connection requirements. This coupling includes a poppet valve for flow control as part of the coupling’s valve design and is compatible with industrial interchange standards for the specified connection type and dimensions. Key Features: - Material: brass body with brass finish - Connection Type: 1/2" NPT female hose fitting with 1/2"-14 thread size. - Coupling Component: Socket type with push-to-connect locking. - Maximum working pressure rating: 500 psi at 70°F (objective restatement) - Maximum flow rate: 2,040 L/min (objective restatement) - Sealing material: Nitrile (Buna-N) (objective restatement) - Temperature rating: -40°F to 250°F (objective restatement) - Overall Length: 3.06 inches; maximum outside diameter 1.5 inches. - Valve included: yes (poppet valve type for flow control) - Not barbed (intended for use with compatible industrial interchange hose/equipment that meet the specified connection type)
