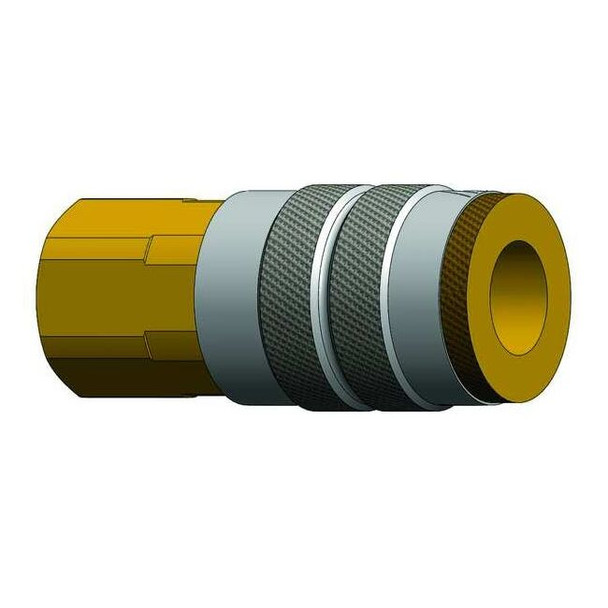

Dixon Female to Industrial Coupler,(F)NPT,3-8 3FF3

The DIXON - 3FF3 is a quick connect hose coupling configured for manual (tool-less) connection and disconnection at the coupling end. It features a sleeve locking mechanism for a connection intended to be sealed; leak resistance depends on proper installation and compatible components for air, water, or fluid lines. Constructed from steel with a zinc-plated finish, this coupling includes an integrated tubular valve and a nitrile seal. It is compatible with hoses having an inner diameter of 3/8 in (as specified) and uses a 3/8"-18 female NPT threaded connection, making it compatible with specified industrial interchange standards when used with matching components. Key Features: - Application: On end of hose or pipe - Coupling Component: Socket - Coupling Locking Type: Sleeve - Body and Coupling Size: 3/8 in - Hose Fitting Gender: Female - Hose Fitting Size and Hose I.D.: 3/8 in - Material: Steel with zinc-plated finish - Includes Valve: Yes, tubular type - Max Working Pressure: rated max working pressure: 500 psi at 70°F - Max Flow Rate: 1,274.26 liters per minute - Seal Material: includes a nitrile seal - Operating Temperature Range: rated operating temperature range: -40°F to 250°F - Overall Length: 2.44 in - Max Outside Diameter: 1 1/8 in
