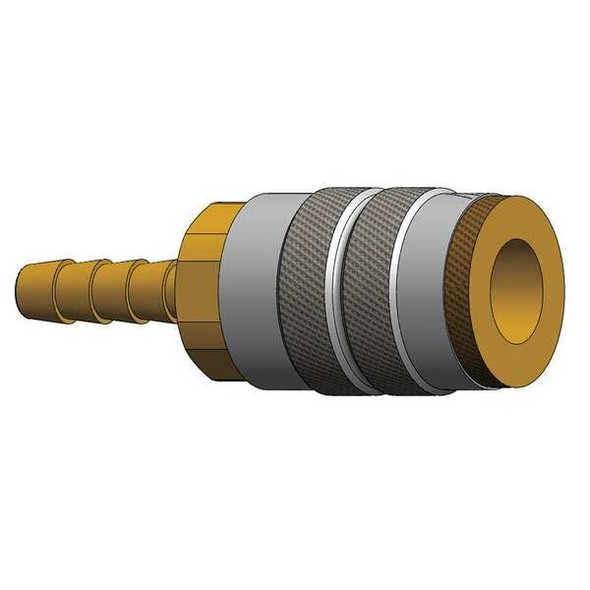

Dixon Barb to Indust. Coupler,Barb,1-4,Steel 2FS2

The DIXON - 2FS2 is a quick-connection hose coupling designed for connects and disconnects using the sleeve locking mechanism at the end of hoses or pipes. It features a sleeve locking mechanism and includes a tubular valve to control fluid or air flow. This coupling is compatibility: for 1/4 in hose inner diameter and 1/4 in barb size, intended to form a sealed connection when installed with compatible hose/barb specifications for compatible compressed air and fluid transfer applications within the stated specifications. Its zinc-plated steel construction supports rated for operation within a temperature range of -40°F to 250°F and rated maximum working pressure: 500 psi at 70°F. Key Features: - Hose Barb connection type with 1/4 in barb size and 1/4 in hose fitting size.- Coupling size and body size of 1/4 in suitable for standard industrial interchange.- Includes a socket coupling component with a sleeve locking type.- Maximum flow rate of 764.55 liters per minute.- Overall length of 2.5 inches and maximum outside diameter of 7/8 inch.- Constructed from zinc-plated steel.- Rated maximum working pressure: 500 psi at 70°F.- Rated temperature range: -40°F to 250°F.- Hose fitting gender is male.
