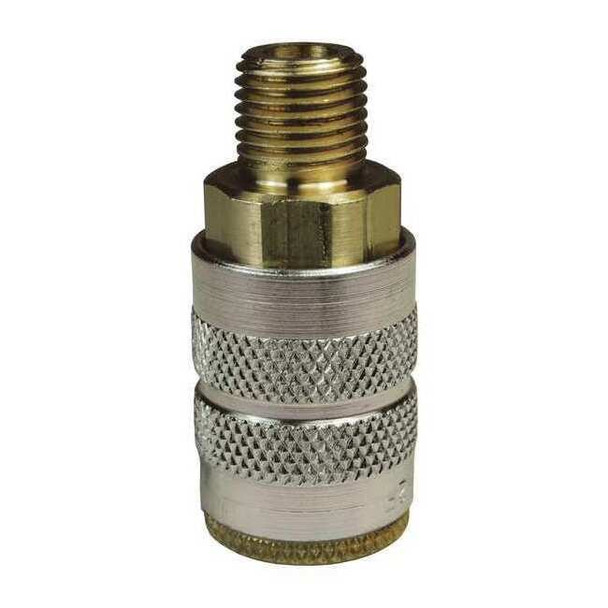

Dixon Male to Indust. Coupler,(M)NPT,1-2,Steel 4FM6

The DIXON - 4FM6 is a hose coupling with sleeve locking mechanism for quick connection that supports tool-free connection and disconnection when the coupling is operated as intended. It is configured to form a sealed connection when properly installed and coupled. It is rated for use with water, air, or other fluids compatible with the stated seal material and temperature/pressure ratings. This industrial interchange fitting is constructed from steel with a zinc-plated finish and incorporates a valve to control the flow. It is compatible with hoses having a 3/4 inch inner diameter and features a male hose fitting connection size and thread size of 3/4 inch NPT. Key Features: - Body and coupling size: 1/2 inch - Connection type: Male NPT thread - Hose fitting size and hose inner diameter: 3/4 inch - Material: Steel with zinc-plated coating - Includes tubular valve for flow control - Locking type: Sleeve mechanism - Maximum working pressure: 500 psi at 70°F (operating within stated pressure and temperature ranges) - Maximum flow rate: 2,576.83 L/min (under rated conditions) - Seal material: Nitrile - Temperature range: -40°F to 250°F (operating temperature range: -40°F to 250°F) - Maximum outside diameter: 1 3/16 inches - Overall length: 3 1/8 inches
