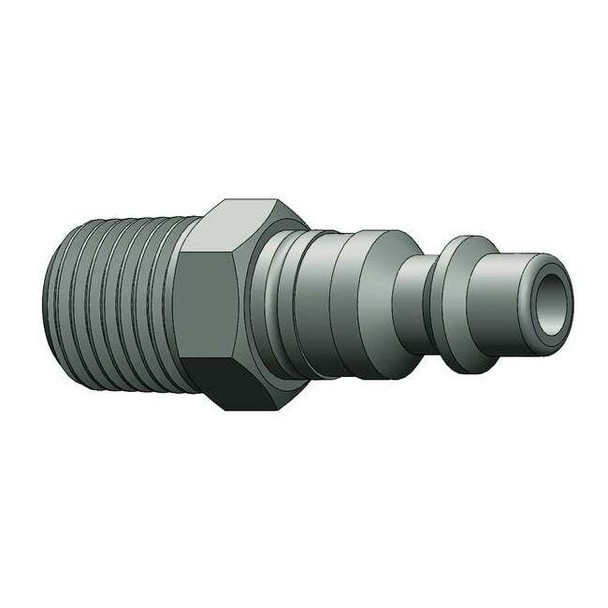

Dixon Male to Industrial Plug,(M)NPT,1-4,SS D2M2-S

The DIXON - D2M2-S is a hose coupling with tool-free quick connection and disconnection of hoses or pipes. It is intended to form a sealed connection when installed on compatible fittings and within the specified operating conditions. Rated for use with compressed air and fluid transfer applications within the specified pressure and temperature ranges, this coupling fits on hose or pipe ends with compatible industrial interchange fittings. The body and coupling size are both 1/4 inch, with a hose fitting of male gender and a 1/4 inch hose inner diameter. The coupling employs a sleeve locking mechanism. Key Features: - Material: 303 Stainless Steel with a zinc-plated finish for surface protection. - Seal material: Nitrile; temperature rating: -40°F to 250°F. - Maximum working pressure: 500 psi at 70°F. - Rated maximum flow rate: 764.55 liters per minute (lpm). - Connection type: 1/4"-18 NPT male thread. - Overall length of 1.69 inches and maximum outside diameter of 11/16 inch. - Interchange type: Industrial, compatible with industrial fittings and air tools.
