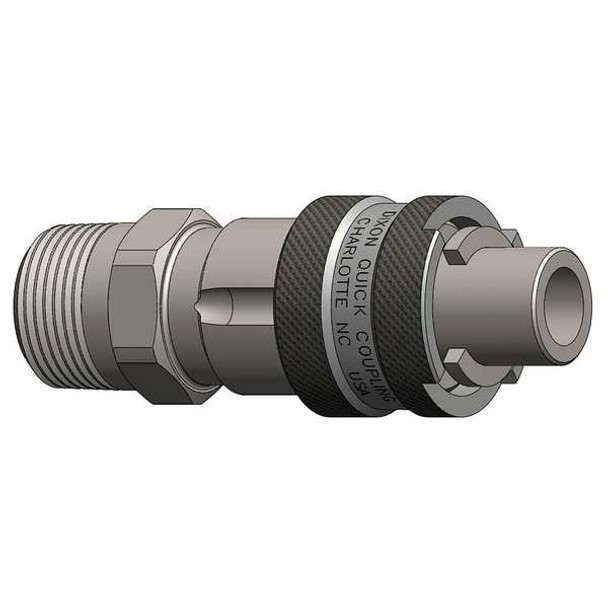

Dixon Male to Bowes Nipple,(M)NPT,1-2,Brass N4M4-B

The DIXON - N4M4-B is a quick connect hose coupling intended to allow connection and disconnection using the sleeve locking mechanism without separate tools. It provides a connection that is rated to operate within the specified pressure and temperature ranges for fluid/air line coupling. Manufactured from brass with a zinc-plated finish, it uses a sleeve locking mechanism to secure the connection and features a male hose fitting. The fitting is intended for use with compressed air, water, and fluid transfer applications within the rated pressure and temperature limits, is rated for a maximum working pressure of 300 psi at 70°F (do not exceed), and accommodates a hose inner diameter of 1/2 inch. Key Features: - Material: Brass with zinc-plated finish - Connection Type: 3/4"-14 threaded male NPT - Coupling Size: 1/2 inch; Body Size: 1/2 inch - Hose Fitting Size: 3/4 inch; Hose Fitting Gender: Male - Seal Material: Nitrile - Maximum Flow Rate: 5,776.64 liters per minute - Maximum Working Pressure: 300 psi @ 70°F - Temperature Range: -40°F to 250°F - Overall Length: 3.63 inches; Maximum Outside Diameter: 1.3125 inches - Locking Type: Sleeve mechanism
