Leeson

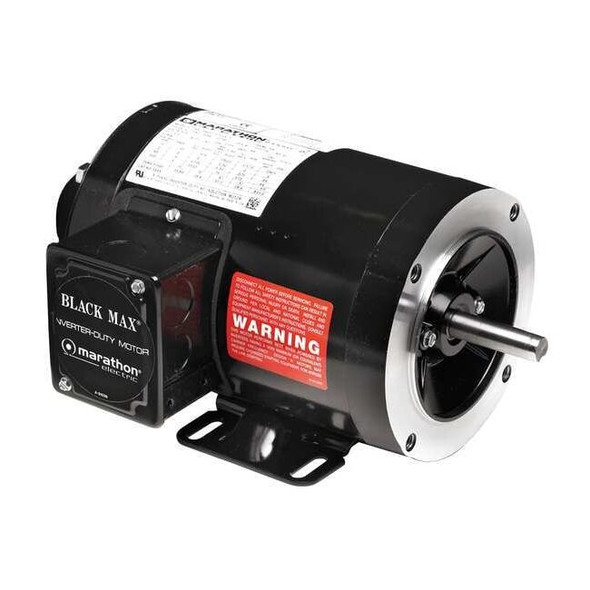

Leeson Vector Motor,3.0 lb-ft,1 HP,230-460 V 143THTR5326
(No reviews yet)
Write a Review
- SKU:
- ZO-G2887656
- MPN:
- 143THTR5326
- Condition:
- New
- Weight:
- 41.00 LBS
- Shipping:
- Free Shipping
Frequently bought together:
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Torque 3 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
View AllClose
Additional Information
Country of Origin: |
United States |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Lead Time: |
Expected to ship in 1-2 business days |
Related Products
Related Products
Leeson Vector Motor,1 HP,1725 rpm,56C,230-460V 056H17F2021
Leeson
MSRP:
$543.75
$502.32
Vector Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Torque 3 ft-lb, Max. Speed 5,400 RPM, Speed...

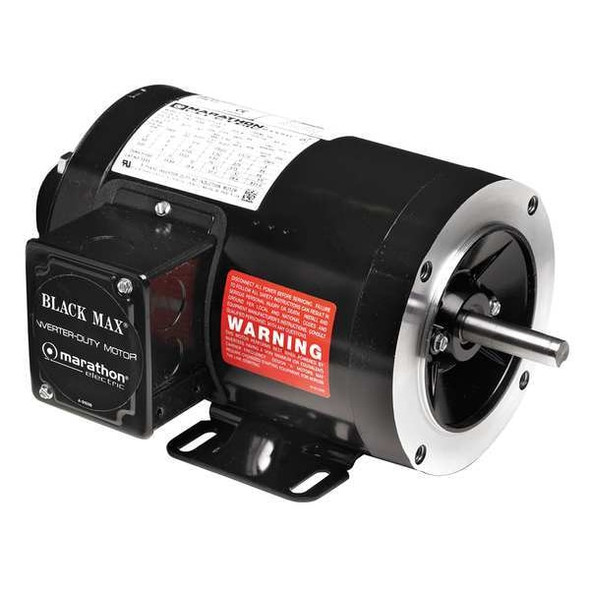

Leeson Vector Motor,1 HP,1725 rpm,56C,230-460V 056H17T5302
