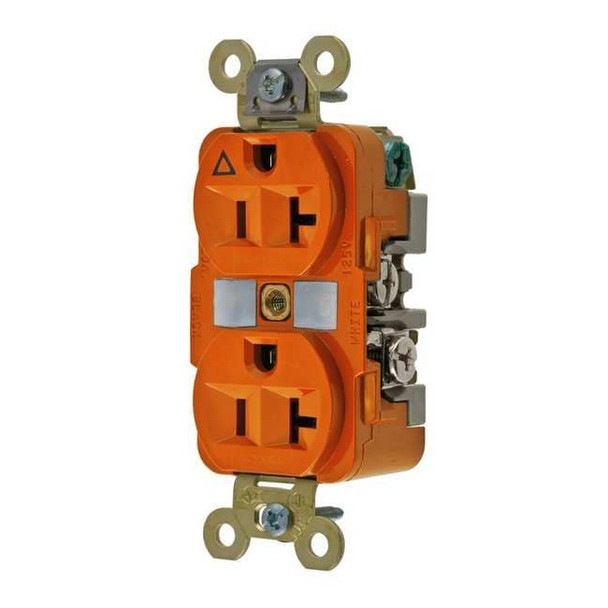

Hubbell Wiring Device-Kellems IG5362

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R OR is a Specification grade duplex receptacle rated for commercial and industrial applications. It features an isolated ground system, which separates the ground contacts from the mounting strap. The device supports both back and side wiring methods with screw terminals and accommodates #12–#10 AWG stranded or solid copper wire. Its orange nylon housing is suitable for use in indoor dry locations.Key Features of the HUBBELL 20A Duplex Receptacle: Amperage/Voltage: Rated for 20A, 125V ACNEMA Configuration: 5-20R (2-pole, 3-wire grounding)Isolated Ground: Dedicated insulated ground path with green grounding screwWiring Method: Back and side wired screw terminalsMaterial Construction: Nylon housing; nickel-plated brass contacts; reinforced PET baseCertification & Standards: UL Listed to UL498 File E2186; CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6 compliantOperating Temperature Range: -40°C to +75°C (without impact)Dielectric Strength: Withstands minimum of 2,000VFace Style: Finder Groove face with triangle marking indicating isolated groundMounting Type: Flush mount with included hardware
